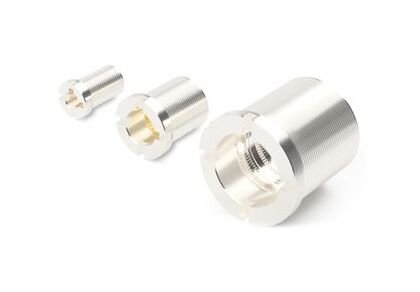

JCC UJMSF Series 2.0mm High Current Socket with Flange
JCC UJMSF Series 2.0mm High Current Socket with Flange
SKU:HIG-3bc57c
Experience high current performance with the JCC UJMSF Series 2.0mm Socket - ideal for bus bars and terminals.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC UJMSF Series 2.0mm High Current Socket with Flange
$29.99
Quantity: 1
Claim Your Seller Account
JCC UJMSF Series 2.0mm High Current Socket with Flange
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC UJMSF Series 2.0mm High Current Socket is designed for superior performance in high current and high voltage applications. This external thread type socket with a flange can be seamlessly attached to bus bars, insulated panels, and round terminals, offering versatility and reliability. With a plug diameter of 2.0mm and plating options of gold (Au) and silver (Ag), this socket ensures efficient power transmission. The fine thread design, along with a maximum current rating of 25A at 25°C, makes it a robust choice for demanding environments. Custom designs are available upon request.
Product Specifications
Specifications Diameter D
2.2 mm
Specifications Diameter F
11.0 mm
Specifications Dimension Fl
2.5 mm
Specifications Dimension K
1.5 mm
Specifications Dimension Kl
1.5 mm
Specifications Dimension M
M8 x 0.75P mm
Specifications Dimension Ml
16.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
25 A
Specifications Plating Louversleeve
Gold (Au) | Silver (Ag)
Specifications Plug Diameter
2.0 mm
Specifications Remarks
(LV082/12-T012-BE25-G25)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
