JCC UJMSF Series 35.0mm High Current Socket with Flange

Name: JCC UJMSF Series 35.0mm High Current Socket with Flange
Brand: JC CHERRY INC.
SKU: HIG-5a5069
Price: 49.99 USD
Availability: OutOfStock

SKU:HIG-5a5069

Enhance high current applications with the JCC UJMSF Series 35.0mm Socket. Secure, durable, and versatile.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

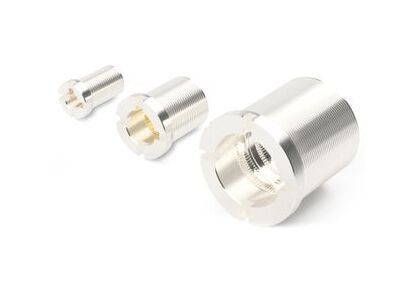

The JCC UJMSF Series 35.0mm High Current Socket with Flange is a versatile and reliable solution for high current applications. With a plug diameter of 35.0mm and a maximum current rating of 1000A at 25°C, this socket is designed to deliver optimal performance. The silver plating louver/sleeve ensures enhanced conductivity and durability. Suitable for use with bus bars, insulated panels, and round terminals, this socket offers fine thread design for secure connections. Custom designs are welcomed to meet specific requirements. (Please note: Washers, spring washers, and nuts are not included.)

Product Specifications

Specifications Diameter D

35.2 mm

Specifications Diameter F

56.0 mm

Specifications Dimension Fl

7.0 mm

Specifications Dimension K

5.0 mm

Specifications Dimension Kl

5.0 mm

Specifications Dimension M

M50 x 1.5P mm

Specifications Dimension Ml

60.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

1000 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

35.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread
