JCC UJMSF Series 40.0mm High Current Socket with Flange
JCC UJMSF Series 40.0mm High Current Socket with Flange
SKU:HIG-3cfa1d
High-performing 40.0mm High Current Socket with Flange for industrial applications. Custom designs available. (Washers, spring washers, and nuts not included)
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
JCC UJMSF Series 40.0mm High Current Socket with Flange
$79.99
Quantity: 1
Claim Your Seller Account
JCC UJMSF Series 40.0mm High Current Socket with Flange
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

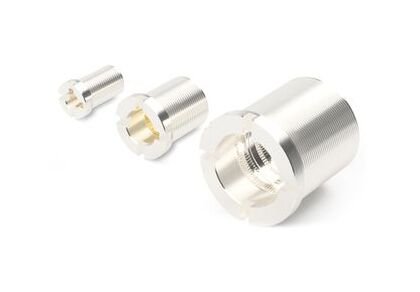

The JCC UJMSF Series 40.0mm High Current Socket with Flange is a top-notch external thread type socket designed for high current applications. Its durable silver-plated construction ensures reliable conductivity, making it ideal for use with bus bars, insulated panels, and round terminals. With a maximum current rating of 1200A at 25°C, this socket guarantees exceptional performance. Custom designs are available upon request. (Washers, spring washers, and nuts not included)
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Diameter D
40.2 mm
Specifications Diameter F
61.0 mm
Specifications Dimension Fl
8.0 mm
Specifications Dimension K
6.0 mm
Specifications Dimension Kl
6.0 mm
Specifications Dimension M
M55 x 1.5P mm
Specifications Dimension Ml
60.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
1200 A
Specifications Plating Louversleeve
Silver (Ag)
Specifications Plug Diameter
40.0 mm
Specifications Remarks
(LV2PC)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
