JCC UJMST Series 16.2mm Thread Type High Current Socket Pin

Name: JCC UJMST Series 16.2mm Thread Type High Current Socket Pin
Brand: JC CHERRY INC.
SKU: HIG-5ed8d9
Price: 24.99 USD
Availability: OutOfStock

SKU:HIG-5ed8d9

Enhance your electrical connections with JCC's high-current socket pin for reliable power transfer and custom design compatibility.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

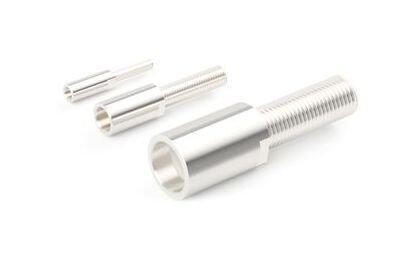

The JCC UJMST Series 16.2mm Thread Type High Current Socket Pin is designed for seamless attachment to bus bars, insulated panels, and round terminals, offering exceptional conductivity and reliability. Its silver-plated louver/sleeve ensures optimal performance even in high-current applications up to 340A. With coarse thread type and M16 x 2.0P dimensions, this socket pin is built to exceed industry standards, making it an ideal choice for custom designs and institutional requirements. Washers, spring washers, and nuts sold separately.

Product Specifications

Specifications Diameter B

22.0 mm

Specifications Diameter D

16.2 mm

Specifications Dimension L

104.0 mm

Specifications Dimension M

M16 x 2.0P mm

Specifications Dimension Ml

56.0 mm

Specifications Dimension S

48.0 mm

Specifications Dimension Sl

38.0 mm

Specifications Dimension Sw

19.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

340 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

16.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMST

Specifications Thread Type

Coarse Thread
