JCC UJMST Series 2.2mm High Current Socket Pin
JCC UJMST Series 2.2mm High Current Socket Pin
SKU:HIG-64b4b0
Efficiently transmit high currents with JCC UJMST Series 2.2mm Socket Pin. Gold-plated for reliability. Custom design friendly.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
JCC UJMST Series 2.2mm High Current Socket Pin
$14.99
Quantity: 1
Claim Your Seller Account
JCC UJMST Series 2.2mm High Current Socket Pin
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

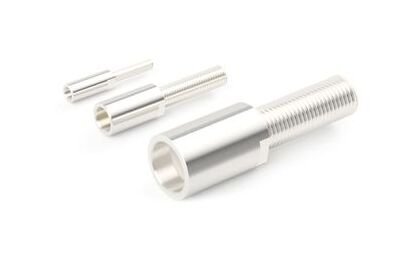

The JCC UJMST Series 2.2mm High Current Socket Pin is designed for efficient attachment to bus bars, insulated panels, and round terminals, offering a secure connection to threaded conductors. Crafted with precise specifications, including a 2.2mm plug diameter and gold plating louver, this socket pin ensures reliable high current transmission up to 20A. With dimensions tailored for optimal performance and compatibility, this socket pin is a versatile solution for custom applications in high current and high voltage setups. Note: Washers, spring washers, and nuts not included.
Product Specifications
Specifications Diameter B
5.5 mm
Specifications Diameter D
2.2 mm
Specifications Dimension L
33.0 mm
Specifications Dimension M
M3 x 0.5P mm
Specifications Dimension Ml
14.0 mm
Specifications Dimension S
19.0 mm
Specifications Dimension Sl
15.5 mm
Specifications Dimension Sw
4.2 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
20 A
Specifications Plating Louversleeve
Gold (Au)
Specifications Plug Diameter
2.0 mm
Specifications Remarks
(LV8/13-T015)
Specifications Series
UJMST
Specifications Thread Type
Coarse Thread
