JCC UJMST Series 25.2mm High Current Thread Type Socket Pin
JCC UJMST Series 25.2mm High Current Thread Type Socket Pin
SKU:HIG-26bc9a
Versatile high current socket pin for secure connections in various applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
JCC UJMST Series 25.2mm High Current Thread Type Socket Pin
$39.99
Quantity: 1
Claim Your Seller Account
JCC UJMST Series 25.2mm High Current Thread Type Socket Pin
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

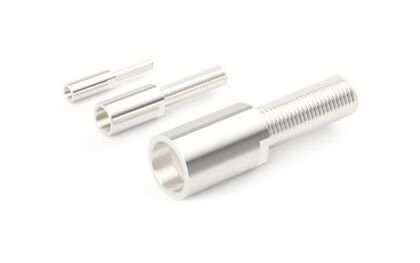

The JCC UJMST Series 25.2mm High Current Thread Type Socket Pin offers a versatile solution for connecting to bus bars, insulated panels, and round terminals. This silver-plated pin has a 25.0mm plug diameter, a maximum current rating of 620A at 25°C, and features a coarse thread for secure connections. With custom design options available, this socket pin ensures reliable performance in high current and high voltage applications. Please note that washers, spring washers, and nuts are not included.
Product Specifications
Specifications Diameter B
38.0 mm
Specifications Diameter D
25.2 mm
Specifications Dimension L
145.0 mm
Specifications Dimension M
M20 x 2.5P mm
Specifications Dimension Ml
70.0 mm
Specifications Dimension S
75.0 mm
Specifications Dimension Sl
62.0 mm
Specifications Dimension Sw
32.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
620 A
Specifications Plating Louversleeve
Silver (Ag)
Specifications Plug Diameter
25.0 mm
Specifications Remarks
(LV2PC)
Specifications Series
UJMST
Specifications Thread Type
Coarse Thread
