JCC UJMST Series 30.2mm Thread Type High Current Socket Pin

Name: JCC UJMST Series 30.2mm Thread Type High Current Socket Pin
Brand: JC CHERRY INC.
SKU: HIG-207957
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-207957

Enhance your high current systems with the JCC UJMST 30.2mm Thread Type Socket Pin. Silver-plated for superior conductivity. Max. current rating 800A. Customizable design for precise fit.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

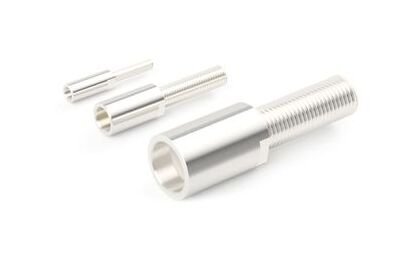

The JCC UJMST Series 30.2mm Thread Type High Current Socket Pin is an essential component for high current and voltage applications. Designed for easy attachment to bus bars, insulated panels, and round terminals, this socket pin features a 30.2mm plug diameter with silver plating for enhanced conductivity. With a maximum current rating of 800A at 25°C, this pin ensures reliable performance in demanding environments. The fine thread design and customizability make it ideal for specialized applications. Note: Washers, spring washers, and nuts are not included.

Product Specifications

Specifications Diameter B

42.0 mm

Specifications Diameter D

30.2 mm

Specifications Dimension L

152.0 mm

Specifications Dimension M

M24 x 2.0P mm

Specifications Dimension Ml

77.0 mm

Specifications Dimension S

75.0 mm

Specifications Dimension Sl

62.0 mm

Specifications Dimension Sw

36.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

800 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

30.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMST

Specifications Thread Type

Fine Thread
