JCC UJMST Series 5.2mm High Current Thread Type Socket Pin

Name: JCC UJMST Series 5.2mm High Current Thread Type Socket Pin
Brand: JC CHERRY INC.
SKU: HIG-4468c7
Price: 27.99 USD
Availability: OutOfStock

SKU:HIG-4468c7

Secure, high current socket pin with 5.2mm plug diameter, ideal for industrial applications.

$27.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

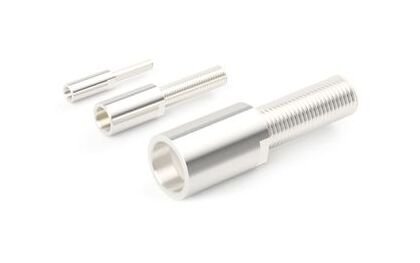

The JCC UJMST Series 5.2mm High Current Thread Type Socket Pin is designed for secure attachment to bus bars, insulated panels, and round terminals, offering reliable connectivity for high current applications. With a durable construction and gold/silver plating, it ensures optimal conductivity and longevity. Featuring a plug diameter of 5.2mm and a maximum current rating of 70A at 25°C, this socket pin is suitable for demanding industrial environments. Custom design options are available to meet specific requirements, making it a versatile choice for institutional and government procurement needs.

Product Specifications

Specifications Diameter B

8.3 mm

Specifications Diameter D

5.2 mm

Specifications Dimension L

49.0 mm

Specifications Dimension M

M5 x 0.8P mm

Specifications Dimension Ml

24.0 mm

Specifications Dimension S

25.0 mm

Specifications Dimension Sl

23.0 mm

Specifications Dimension Sw

7.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

70 A

Specifications Plating Louversleeve

Gold (Au) | Silver (Ag)

Specifications Plug Diameter

5.0 mm

Specifications Remarks

(LV115/17-T018-BE25-G25)

Specifications Series

UJMST

Specifications Thread Type

Coarse Thread

JCC UJMST Series 5.2mm High Current Thread Type Socket Pin
