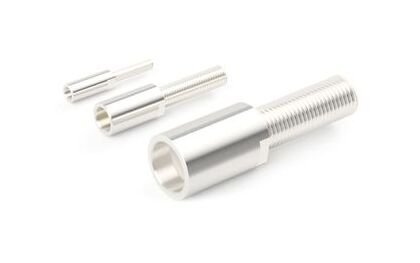

JCC UJMST Series 6.2mm High Current Socket Pin
JCC UJMST Series 6.2mm High Current Socket Pin
SKU:HIG-5c6576
Secure high current connectivity with JCC 6.2mm Socket Pin. Gold & silver plated for reliability. Custom designs available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
JCC UJMST Series 6.2mm High Current Socket Pin
$24.99
Quantity: 1
Claim Your Seller Account
JCC UJMST Series 6.2mm High Current Socket Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC UJMST Series 6.2mm High Current Socket Pin is designed for secure attachments to bus bars, insulated panels, and round terminals, offering efficient connectivity in high current and high voltage applications. With a durable gold (Au) and silver (Ag) plating louver/sleeve, this socket pin ensures reliable performance and conductivity. Featuring a 6.2mm plug diameter, coarse thread type, and a maximum current rating of 90A at 25°C, this product meets stringent industry standards for quality and durability. Custom designs are available upon consultation, making it a versatile solution for diverse institutional needs.
Product Specifications
Specifications Diameter B
9.6 mm
Specifications Diameter D
6.2 mm
Specifications Dimension L
52.0 mm
Specifications Dimension M
M6 x 1.0P mm
Specifications Dimension Ml
27.0 mm
Specifications Dimension S
25.0 mm
Specifications Dimension Sl
23.0 mm
Specifications Dimension Sw
8.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
90 A
Specifications Plating Louversleeve
Gold (Au) | Silver (Ag)
Specifications Plug Diameter
6.0 mm
Specifications Remarks
(LV115/20 T018-BE25-G25)
Specifications Series
UJMST
Specifications Thread Type
Coarse Thread
