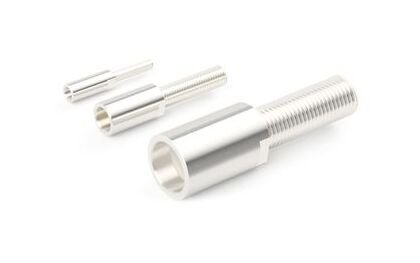

JCC UJMST Series High Current 4.1mm Thread Type Socket Pin

Name: JCC UJMST Series High Current 4.1mm Thread Type Socket Pin
Brand: JC CHERRY INC.
SKU: HIG-641779
Price: 24.99 USD
Availability: OutOfStock

SKU:HIG-641779

Upgrade your electrical connections with JCC's high-current 4.1mm Thread Type Socket Pin for secure and reliable power transfer.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMST Series High Current 4.1mm Thread Type Socket Pin is a robust electrical connector designed for high current and voltage applications. With a gold-plated 4.1mm plug diameter and M4 x 0.7P coarse thread, this socket pin ensures secure and reliable connections. Its 30A maximum current rating at 25°C, along with dimensions tailored for precise installations, makes it ideal for bus bars, insulated panels, and threaded conductors. Custom designs are available upon request. Enhance your electrical systems with the reliability and performance of JCC's UJMST Series Socket Pin.

Product Specifications

Specifications Diameter B

6.0 mm

Specifications Diameter D

4.1 mm

Specifications Dimension L

39.0 mm

Specifications Dimension M

M4 x 0.7P mm

Specifications Dimension Ml

19.0 mm

Specifications Dimension S

20.0 mm

Specifications Dimension Sl

16.5 mm

Specifications Dimension Sw

5.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

30 A

Specifications Plating Louversleeve

Gold (Au)

Specifications Plug Diameter

3.0 mm

Specifications Remarks

(LV8/17-T015)

Specifications Series

UJMST

Specifications Thread Type

Coarse Thread
