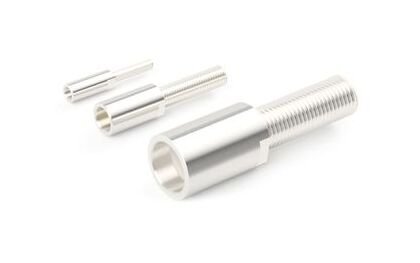

JCC UJMST Series High Current Socket Pin - 14.2mm Plug Diameter, Coarse Thread

Name: JCC UJMST Series High Current Socket Pin - 14.2mm Plug Diameter, Coarse Thread
Brand: JC CHERRY INC.
SKU: HIG-e9ad86
Price: 24.99 USD
Availability: OutOfStock

SKU:HIG-e9ad86

Upgrade your high current connections with JCC UJMST Series High Current Socket Pin - 14.2mm Plug Diameter for efficient power transmission.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMST Series High Current Socket Pin features a 14.2mm plug diameter with a silver plating louver/sleeve, ideal for high current applications up to 280A. Designed for easy attachment to bus bars, insulated panels, round terminals, or threaded conductors, this socket pin boasts precise dimensions and a durable build. Custom designs available upon request. Enhance your electrical connections with the reliable and robust UJMST Series.

Product Specifications

Specifications Diameter B

20.0 mm

Specifications Diameter D

14.2 mm

Specifications Dimension L

96.0 mm

Specifications Dimension M

M14 x 2.0P mm

Specifications Dimension Ml

48.0 mm

Specifications Dimension S

48.0 mm

Specifications Dimension Sl

38.0 mm

Specifications Dimension Sw

17.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

280 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

14.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMST

Specifications Thread Type

Coarse Thread
