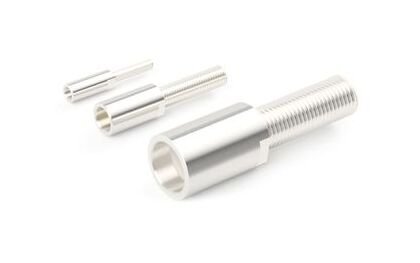

JCC UJMST Series High Current Socket Pin 35.2mm Fine Thread Silver Plated

Name: JCC UJMST Series High Current Socket Pin 35.2mm Fine Thread Silver Plated
Brand: JC CHERRY INC.
SKU: HIG-ce5ca7
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-ce5ca7

High current JCC UJMST Series socket pin for reliable, high-performance connections in industrial applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMST Series 35.2mm Plug Diameter Thread Type High Current Socket Pin is a premium solution for high current applications. Designed to be attached to Bus bars, Insulated panels, Round terminals, or threaded Conductors, this socket pin offers exceptional performance and reliability. With a maximum current rating of 1000A at 25°C, silver plating for optimal conductivity, and custom design options available, it's ideal for demanding industrial environments. Please note that washers, spring washers, and nuts are not included.

Product Specifications

Specifications Diameter B

48.0 mm

Specifications Diameter D

35.2 mm

Specifications Dimension L

165.0 mm

Specifications Dimension M

M30 x 2.0P mm

Specifications Dimension Ml

85.0 mm

Specifications Dimension S

80.0 mm

Specifications Dimension Sl

62.0 mm

Specifications Dimension Sw

41.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

1000 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

35.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMST

Specifications Thread Type

Fine Thread
