JCC UJMST Series High Current Threaded Socket Pins (5.9mm Plug, Gold Plating, 60A)

Name: JCC UJMST Series High Current Threaded Socket Pins (5.9mm Plug, Gold Plating, 60A)
Brand: JC CHERRY INC.
SKU: HIG-2d8936
Price: 39.99 USD
Availability: OutOfStock

SKU:HIG-2d8936

High current threaded socket pins with 5.9mm plug, gold plating, and 60A current rating for reliable performance in various applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

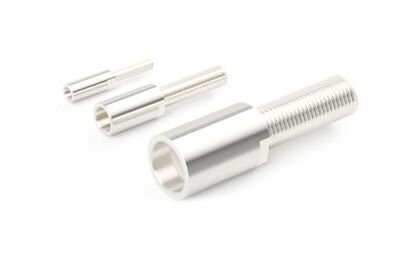

The JCC UJMST Series High Current Threaded Socket Pins are versatile components designed for easy attachment to bus bars, insulated panels, round terminals, and threaded conductors. With a 5.9mm plug diameter and gold plating louver/sleeve, these pins ensure reliable conductivity and durability in high current applications. Featuring a maximum current rating of 60A at 25°C, these socket pins meet stringent quality standards for robust performance and custom designs. Washers, spring washers, and nuts are not included, allowing for flexible installation options tailored to specific requirements.

Product Specifications

Specifications Diameter B

8.3 mm

Specifications Diameter D

5.9 mm

Specifications Dimension L

50.0 mm

Specifications Dimension M

M5 x 0.8P mm

Specifications Dimension Ml

25.0 mm

Specifications Dimension S

25.0 mm

Specifications Dimension Sl

20.0 mm

Specifications Dimension Sw

5.6 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

60 A

Specifications Plating Louversleeve

Gold (Au)

Specifications Plug Diameter

5.0 mm

Specifications Remarks

(LV115/17-T020)

Specifications Series

UJMST

Specifications Thread Type

Coarse Thread
