JCC UJMSW 25.0mm High Current Socket with Flange
JCC UJMSW 25.0mm High Current Socket with Flange
SKU:HIG-a9fb06
Experience high current connectivity excellence with JCC UJMSW 25.0mm Socket. Maximize power transmission efficiency with Silver (Ag) plating and 620A capacity.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
JCC UJMSW 25.0mm High Current Socket with Flange
$49.99
Quantity: 1
Claim Your Seller Account
JCC UJMSW 25.0mm High Current Socket with Flange
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

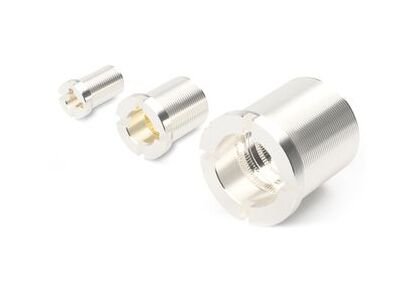

The JCC UJMSW 25.0mm High Current Socket with Flange is a premium external thread type socket engineered for high current applications. Designed for easy attachment to bus bars, insulated panels, and round terminals, this socket boasts a durable Silver (Ag) plating louver/sleeve for enhanced conductivity. With a maximum current rating of 620A at 25°C, this socket ensures reliable power transmission. Custom designs are available upon consultation, meeting diverse project requirements. Enhance your electrical connections with the precision and quality of the JCC UJMSW series.
Product Specifications
Specifications Diameter D
25.2 mm
Specifications Diameter F
48.0 mm
Specifications Dimension Fl
7.0 mm
Specifications Dimension K
5.0 mm
Specifications Dimension Kl
5.0 mm
Specifications Dimension M
M42 x 1.5P mm
Specifications Dimension Ml
60.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
620 A
Specifications Plating Louversleeve
Silver (Ag)
Specifications Plug Diameter
25.0 mm
Specifications Remarks
(LV2PC)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
