JCC UJMSW 4.0mm High Current Threaded Socket with Flange

Name: JCC UJMSW 4.0mm High Current Threaded Socket with Flange
Brand: JC CHERRY INC.
SKU: HIG-a26302
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-a26302

Enhance power systems with JCC UJMSW 4.0mm High Current Threaded Socket for reliable, high-performance connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

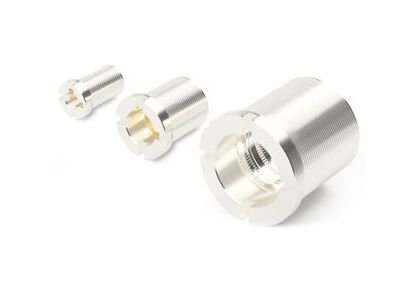

The JCC UJMSW Series 4.0mm High Current Threaded Socket with Flange is a top-tier solution for demanding power applications. Designed for easy attachment to bus bars, insulated panels, and round terminals, this socket offers fine thread connection with a gold or silver plating option. With a maximum current rating of 50A at 25°C, this socket ensures reliable power transmission. Custom designs are available upon consultation. Enhance your power systems with the precision and quality of JCC.

Product Specifications

Specifications Diameter D

4.2 mm

Specifications Diameter F

13.0 mm

Specifications Dimension Fl

3.0 mm

Specifications Dimension K

1.5 mm

Specifications Dimension Kl

2.0 mm

Specifications Dimension M

M10 x 1.0P mm

Specifications Dimension Ml

19.5 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

50 A

Specifications Plating Louversleeve

Gold (Au) | Silver (Ag)

Specifications Plug Diameter

4.0 mm

Specifications Remarks

(LV082/20-T012-BE25-G25)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread

JCC UJMSW 4.0mm High Current Threaded Socket with Flange
