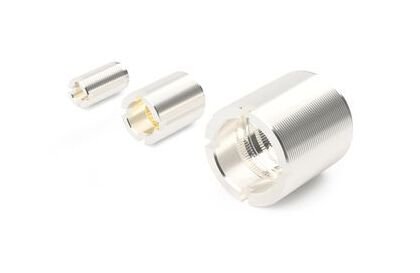

JCC UJMSW 5.0mm External Thread High Current Socket

Name: JCC UJMSW 5.0mm External Thread High Current Socket
Brand: JC CHERRY INC.
SKU: HIG-239b21
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-239b21

Get reliable high current connections with JCC UJMSW 5.0mm External Thread Socket. Gold/Silver plating, 70A rating, custom designs available.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMSW Series 5.0mm External Thread High Current Socket is designed for seamless attachment to bus bars, insulated panels, and round terminals, featuring a gold or silver plating louver/sleeve. With a fine thread type and a maximum current rating of 70A at 25ºC, this socket ensures reliable electrical connections. Custom designs are available upon consultation, making it a versatile solution for various applications.

Product Specifications

Specifications Diameter D

5.2 mm

Specifications Dimension K

1.5 mm

Specifications Dimension Kl

2.0 mm

Specifications Dimension M

M10 x 1.0P mm

Specifications Dimension Ml

19.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

70 A

Specifications Plating Louversleeve

Gold (Au) | Silver (Ag)

Specifications Plug Diameter

5.0 mm

Specifications Remarks

(LV115/17-T018-BE25-G25)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread
