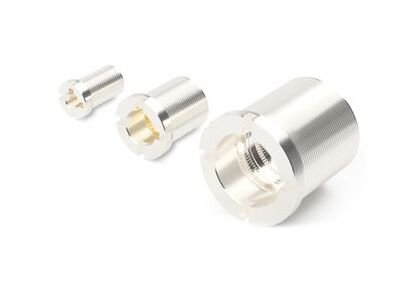

JCC UJMSW Series 12.0mm High Current Socket with Flange
JCC UJMSW Series 12.0mm High Current Socket with Flange
SKU:HIG-d483fb
High current socket with 12.0mm plug diameter, 230A rating, and silver plating for reliable power connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC UJMSW Series 12.0mm High Current Socket with Flange
$29.99
Quantity: 1
Claim Your Seller Account
JCC UJMSW Series 12.0mm High Current Socket with Flange
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC UJMSW Series 12.0mm High Current Socket with Flange is designed for seamless attachment to bus bars, insulated panels, and threaded conductors. With a plug diameter of 12.0mm and a maximum current rating of 230A at 25°C, this socket ensures secure and efficient power connections. Featuring silver plating for enhanced conductivity, fine thread type for precise fitting, and dimensions conforming to M20 x 1.0P mm standards, this socket guarantees reliable performance. Custom designs available upon consultation. (Washers, spring washers, and nuts not included).
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Diameter D
12.2 mm
Specifications Diameter F
24.0 mm
Specifications Dimension Fl
5.5 mm
Specifications Dimension K
3.5 mm
Specifications Dimension Kl
3.5 mm
Specifications Dimension M
M20 x 1.0P mm
Specifications Dimension Ml
33.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
230 A
Specifications Plating Louversleeve
Silver (Ag)
Specifications Plug Diameter
12.0 mm
Specifications Remarks
(LV2PC)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
