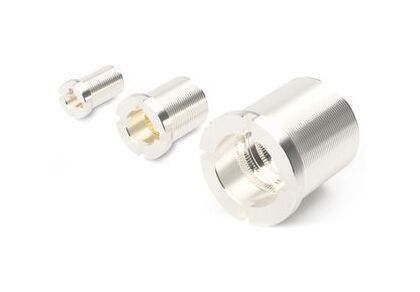

JCC UJMSW Series 14.0mm High Current Socket with Flange

Name: JCC UJMSW Series 14.0mm High Current Socket with Flange
Brand: JC CHERRY INC.
SKU: HIG-f54b1f
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-f54b1f

Versatile JCC UJMSW Series 14.0mm High Current Socket with Flange for multiple applications. Custom designs available.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMSW Series 14.0mm High Current Socket with Flange is a versatile solution suitable for various applications, including bus bars, insulated panels, and round terminals. Featuring a fine thread type and silver plating louver/sleeve, this socket is designed to handle up to 280A at 25°C. Custom designs are available upon consultation. Please note that washers, spring washers, and nuts are not included.

Product Specifications

Specifications Diameter D

14.2 mm

Specifications Diameter F

26.0 mm

Specifications Dimension Fl

6.0 mm

Specifications Dimension K

4.0 mm

Specifications Dimension Kl

4.0 mm

Specifications Dimension M

M22 x 1.0P mm

Specifications Dimension Ml

36.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

280 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

14.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread

JCC UJMSW Series 14.0mm High Current Socket with Flange
