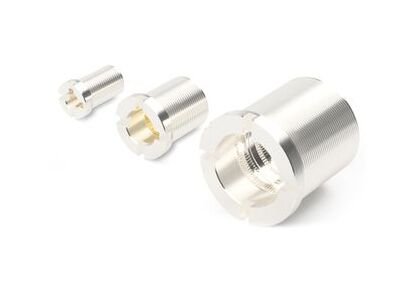

JCC UJMSW Series 16.0mm High Current Socket with Flange

Name: JCC UJMSW Series 16.0mm High Current Socket with Flange
Brand: JC CHERRY INC.
SKU: HIG-abe7de
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-abe7de

Experience superior conductivity with the JCC UJMSW Series 16.0mm High Current Socket.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMSW Series 16.0mm High Current Socket with Flange is a top-tier external thread type socket designed for seamless attachment to bus bars, insulated panels, or round terminals. Featuring a 16.2mm silver-plated louver/sleeve for enhanced conductivity and durability, this socket offers a fine thread type with a 28.0mm diameter and can handle a maximum current rating of 340A at 25°C. Custom designs available upon consultation. Essential washers, spring washers, and nuts not included.

Product Specifications

Specifications Diameter D

16.2 mm

Specifications Diameter F

28.0 mm

Specifications Dimension Fl

6.0 mm

Specifications Dimension K

4.0 mm

Specifications Dimension Kl

4.0 mm

Specifications Dimension M

M24 x 1.0P mm

Specifications Dimension Ml

36.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

340 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

16.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread
