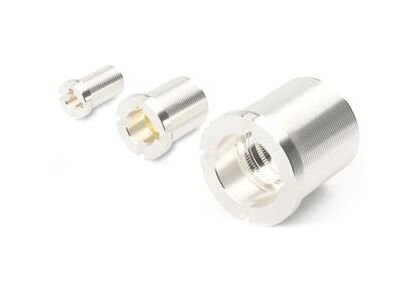

JCC UJMSW Series 18.0mm High Current Socket with Threaded Flange

Name: JCC UJMSW Series 18.0mm High Current Socket with Threaded Flange
Brand: JC CHERRY INC.
SKU: HIG-f0e53e
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-f0e53e

Enhance connections with JCC UJMSW Series 18.0mm High Current Socket for reliable, high-capacity power delivery.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMSW Series 18.0mm High Current Socket with Threaded Flange offers a robust solution for attaching to bus bars, insulated panels, and threaded conductors. With a silver plating louver/sleeve for enhanced conductivity, this socket is designed for high current applications up to 400A at 25°C. The fine thread type and precision dimensions ensure secure connections, while the included custom design options cater to specific project requirements. Note: Washers, spring washers, and nuts not included.

Product Specifications

Specifications Diameter D

18.2 mm

Specifications Diameter F

32.0 mm

Specifications Dimension Fl

6.0 mm

Specifications Dimension K

4.0 mm

Specifications Dimension Kl

4.0 mm

Specifications Dimension M

M28 x 1.0P mm

Specifications Dimension Ml

40.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

400 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

18.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread
