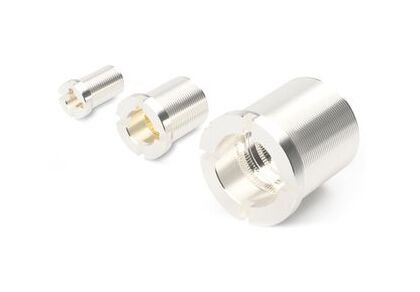

JCC UJMSW Series 2.5mm High Current Socket with Flange
JCC UJMSW Series 2.5mm High Current Socket with Flange
SKU:HIG-b39bd9
Highly durable 2.5mm high current socket with flange for secure connections in high voltage applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC UJMSW Series 2.5mm High Current Socket with Flange
$29.99
Quantity: 1
Claim Your Seller Account
JCC UJMSW Series 2.5mm High Current Socket with Flange
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC UJMSW Series 2.5mm High Current Socket with Flange is a versatile solution for connecting to bus bars, insulated panels, and round terminals. Designed for threaded conductors, this socket offers a secure and reliable connection. With a plug diameter of 2.5mm and a maximum current rating of 30A at 25°C, this socket is ideal for high current and high voltage applications. The gold and silver plating ensures efficient conductivity. Custom designs are available upon consultation, giving you tailored solutions for your needs.
Product Specifications
Specifications Diameter D
2.7 mm
Specifications Diameter F
11.0 mm
Specifications Dimension Fl
2.5 mm
Specifications Dimension K
1.5 mm
Specifications Dimension Kl
1.5 mm
Specifications Dimension M
M8 x 0.75P mm
Specifications Dimension Ml
16.5 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
30 A
Specifications Plating Louversleeve
Gold (Au) | Silver (Ag)
Specifications Plug Diameter
2.5 mm
Specifications Remarks
(LV082/14-T012-BE25-G25)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
