JCC UJMSW Series 20.0mm High Current External Thread Socket with Flange

Name: JCC UJMSW Series 20.0mm High Current External Thread Socket with Flange
Brand: JC CHERRY INC.
SKU: HIG-197a96
Price: 49.99 USD
Availability: OutOfStock

SKU:HIG-197a96

Versatile JCC UJMSW Series 20.0mm High Current External Thread Socket with Flange for reliable, high-conductivity applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

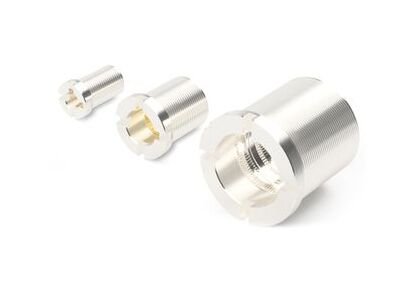

The JCC UJMSW Series 20.0mm Plug Diameter External Thread Type High Current Socket with Flange is designed for versatile applications, ideal for attaching to Bus bars, Insulated panels, or threaded Conductors. With a Silver (Ag) Plating Louver/Sleeve, this socket ensures reliable conductivity. Featuring a Fine Thread type and a maximum current rating of 460 A at 25°C, this socket is a robust solution for high current and high voltage requirements. Custom designs are available upon consultation, providing tailored solutions for your specific needs.

Product Specifications

Specifications Diameter D

20.2 mm

Specifications Diameter F

36.0 mm

Specifications Dimension Fl

6.0 mm

Specifications Dimension K

5.0 mm

Specifications Dimension Kl

4.0 mm

Specifications Dimension M

M30 x 1.0P mm

Specifications Dimension Ml

40.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

460 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

20.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread

JCC UJMSW Series 20.0mm High Current External Thread Socket with Flange
