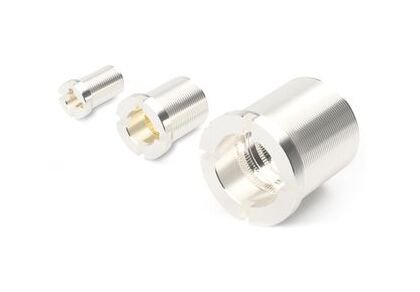

JCC UJMSW Series 3.0mm High Current Socket with Flange
JCC UJMSW Series 3.0mm High Current Socket with Flange
SKU:HIG-a15ffb
Secure high-current socket with flange, gold & silver plating, and 35A rating. Ideal for versatile custom applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
JCC UJMSW Series 3.0mm High Current Socket with Flange
$24.99
Quantity: 1
Claim Your Seller Account
JCC UJMSW Series 3.0mm High Current Socket with Flange
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC UJMSW Series 3.0mm High Current Socket with Flange is engineered for secure attachment to Bus bars, Insulated panels, and Round terminals, providing reliable conductivity. With a gold and silver plating louver/sleeve, fine thread type, and a maximum current rating of 35A at 25°C, this socket ensures optimal performance and durability. Designed for custom applications, this socket meets stringent institutional procurement standards and offers versatility and precision in electrical connections.
Product Specifications
Specifications Diameter D
3.2 mm
Specifications Diameter F
11.0 mm
Specifications Dimension Fl
2.5 mm
Specifications Dimension K
1.5 mm
Specifications Dimension Kl
1.5 mm
Specifications Dimension M
M8 x 0.75P mm
Specifications Dimension Ml
16.5 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
35 A
Specifications Plating Louversleeve
Gold (Au) | Silver (Ag)
Specifications Plug Diameter
3.0 mm
Specifications Remarks
(LV082/16-T012-BE25-G25)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
