JCC UJMSW Series 30.0mm External Thread High Current Socket with Flange
JCC UJMSW Series 30.0mm External Thread High Current Socket with Flange
SKU:HIG-432910
Get high reliability and precision with JCC's 30.0mm High Current Socket for demanding electrical applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
JCC UJMSW Series 30.0mm External Thread High Current Socket with Flange
$49.99
Quantity: 1
Claim Your Seller Account
JCC UJMSW Series 30.0mm External Thread High Current Socket with Flange
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

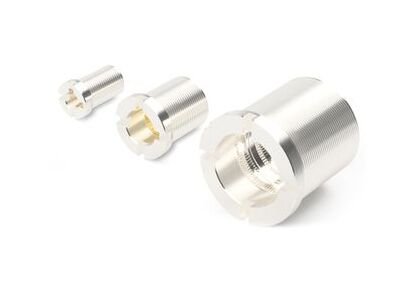

The JCC UJMSW Series 30.0mm External Thread High Current Socket with Flange is a durable and reliable solution for high-current applications. Designed to be attached to bus bars, insulated panels, or round terminals, this socket accommodates threaded conductors with precision. With a plug diameter of 30.0mm and a maximum current rating of 800A at 25°C, this socket is ideal for heavy-duty electrical setups. The silver-plated louver/sleeve ensures optimal conductivity. Custom designs are available upon consultation. Please note that washers, spring washers, and nuts are not included.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Diameter D
30.2 mm
Specifications Diameter F
54.0 mm
Specifications Dimension Fl
7.0 mm
Specifications Dimension K
5.0 mm
Specifications Dimension Kl
5.0 mm
Specifications Dimension M
M48 x 1.5P mm
Specifications Dimension Ml
60.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
800 A
Specifications Plating Louversleeve
Silver (Ag)
Specifications Plug Diameter
30.0 mm
Specifications Remarks
(LV2PC)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
