JCC UJMSW Series 40.0mm High Current Plug Diameter External Thread Socket
JCC UJMSW Series 40.0mm High Current Plug Diameter External Thread Socket
SKU:HIG-a1ef0f
Highly conductive JCC UJMSW 40.0mm High Current Thread Socket for secure and reliable power connections
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
JCC UJMSW Series 40.0mm High Current Plug Diameter External Thread Socket
$89.99
Quantity: 1
Claim Your Seller Account
JCC UJMSW Series 40.0mm High Current Plug Diameter External Thread Socket
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

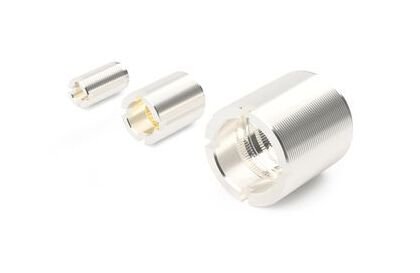

The JCC UJMSW Series 40.0mm High Current Plug Diameter External Thread Socket is a robust solution designed for high current applications. With a maximum current rating of 1200A at 25°C, this socket ensures reliable power transmission. The silver plating louver/sleeve provides enhanced conductivity and durability. Its fine thread type allows for secure connections, suitable for bus bars, insulated panels, and round terminals. Customize to your requirements for tailored performance. (Washers, spring washers, and nuts not included)
Product Specifications
Specifications Diameter D
40.2 mm
Specifications Dimension K
6.0 mm
Specifications Dimension Kl
6.0 mm
Specifications Dimension M
M55 x 1.5P mm
Specifications Dimension Ml
60.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
1200 A
Specifications Plating Louversleeve
Silver (Ag)
Specifications Plug Diameter
40.0 mm
Specifications Remarks
(LV2PC)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
