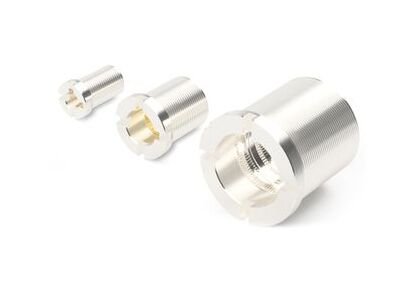

JCC UJMSW Series 5.0mm High Current Socket with Flange
JCC UJMSW Series 5.0mm High Current Socket with Flange
SKU:HIG-7fe4d6
Enhance your electrical systems with the JCC UJMSW Series 5.0mm High Current Socket for robust, high-performance connectivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
JCC UJMSW Series 5.0mm High Current Socket with Flange
$29.99
Quantity: 1
Claim Your Seller Account
JCC UJMSW Series 5.0mm High Current Socket with Flange
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JCC UJMSW Series High Current Socket with Flange is designed for seamless attachment to bus bars, insulated panels, and threaded conductors, offering versatility for custom designs. Featuring a fine thread type, this socket boasts a 5.0mm plug diameter with Gold (Au) and Silver (Ag) plating options. With a maximum current rating of 70A at 25°C, this socket ensures reliable, high-performance connectivity for your electrical applications.
Product Specifications
Specifications Diameter D
5.2 mm
Specifications Diameter F
13.0 mm
Specifications Dimension Fl
3.0 mm
Specifications Dimension K
1.5 mm
Specifications Dimension Kl
2.0 mm
Specifications Dimension M
M10 x 1.0P mm
Specifications Dimension Ml
19.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
70 A
Specifications Plating Louversleeve
Gold (Au) | Silver (Ag)
Specifications Plug Diameter
5.0 mm
Specifications Remarks
(LV115/17-T018-BE25-G25)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
