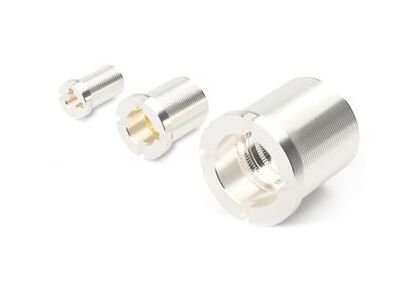

JCC UJMSW Series 8.0mm High Current Threaded Socket with Flange

Name: JCC UJMSW Series 8.0mm High Current Threaded Socket with Flange
Brand: JC CHERRY INC.
SKU: HIG-4bee82
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-4bee82

Secure connection for high-power applications. Fine thread type with 125A current rating. Gold/silver plating for enhanced durability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The JCC UJMSW Series 8.0mm High Current Threaded Socket with Flange is a versatile and reliable electrical component designed for secure attachment to bus bars, insulated panels, and round terminals. Its fine thread type allows easy integration with threaded conductors, ensuring a stable and efficient connection. With a maximum current rating of 125A at 25°C, this socket is suitable for high-power applications. The gold and silver plating on the louver/sleeve enhances conductivity and durability. Custom designs are available upon consultation, making it a perfect solution for diverse industrial needs.

Product Specifications

Specifications Diameter D

8.2 mm

Specifications Diameter F

18.0 mm

Specifications Dimension Fl

3.5 mm

Specifications Dimension K

2.5 mm

Specifications Dimension Kl

2.5 mm

Specifications Dimension M

M14 x 1.0P mm

Specifications Dimension Ml

33.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

125 A

Specifications Plating Louversleeve

Gold (Au) | Silver (Ag)

Specifications Plug Diameter

8.0 mm

Specifications Remarks

(LV115/26-T018-BE25-G25)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread

JCC UJMSW Series 8.0mm High Current Threaded Socket with Flange
