Jefferson 2026 Series 2-Way Solenoid Valves
Jefferson 2026 Series 2-Way Solenoid Valves
SKU:JEF-ea1be2
Jefferson 2026 Series 2-Way Solenoid Valves: Reliable flow control for industrial applications. Brass body, FKM seat, 0-150 psig, 302°F, 1/8 in port, 24 VDC.
Regular price
$76.67
Regular price
Sale price
$76.67
Unit price
per
Initiate Order
Jefferson 2026 Series 2-Way Solenoid Valves
$76.67
Quantity: 1
Claim Your Seller Account
Jefferson 2026 Series 2-Way Solenoid Valves
$76.67
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson 2026 Series 2-Way Solenoid Valves are engineered for precision performance across various applications such as instrumentation, laboratory use, burner pilot systems for gas and oil, welding equipment, and humidifiers. Constructed with a durable brass body and FKM seat material, these valves operate at pressures ranging from 0 to 150 psig, with a maximum temperature tolerance of 302°F. With a compact design and direct-acting mechanism, these valves offer both normally closed and normally open configurations, ensuring reliable flow control without the need for minimum differential pressure. The Jefferson 2026 Series valves, featuring a 1/8 inch port size and 24 VDC voltage requirement, guarantee efficient and safe operation in demanding industrial environments.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
6
Specifications Coil Va Inrush Amperage
6

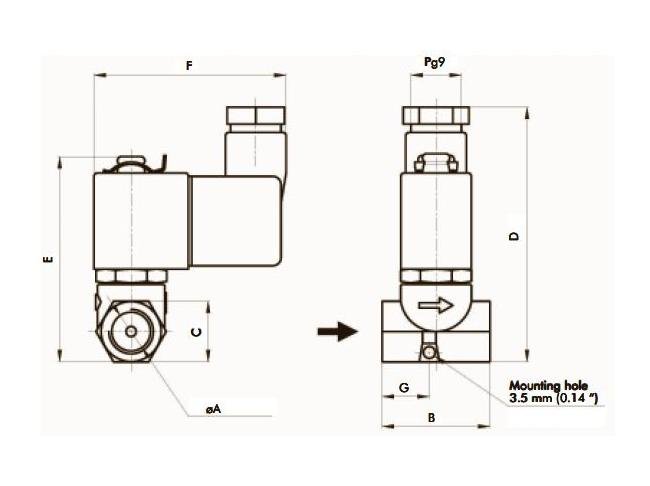

Specifications Dim A
1/8 in
Specifications Dim B
1.26 in
Specifications Dim C
.71 in
Specifications Dim D
2.99 in
Specifications Dim E
2.4 in
Specifications Dim F
2.24 in
Specifications Dim G
.55 in
Specifications Flow Coefficient Cv
0.15
Specifications List Price
76.67 USD
Specifications Max Temperature
302 ºF | 150 ºC
Specifications Operating Pressure
0 to 150 psig | 0 to 10 bar
Specifications Orifice Size
0.088 in | 2.25 mm
Specifications Port Size
1/8 in
Specifications Seat Material
FKM
Specifications Series
2026
Specifications Valve Type
Normally Closed
Specifications Voltage
24 VDC
Specifications Weight
.38 lbs
