Jefferson 2026 Series 2-Way Solenoid Valves
Jefferson 2026 Series 2-Way Solenoid Valves
SKU:JEF-c58664
Efficiently control fluid flow with Jefferson 2026 Series 2-Way Solenoid Valves featuring brass body, EPDM seat, and 0-150 psig operating pressure range.
Regular price
$74.25
Regular price
Sale price
$74.25
Unit price
per
Initiate Order
Jefferson 2026 Series 2-Way Solenoid Valves
$74.25
Quantity: 1
Claim Your Seller Account
Jefferson 2026 Series 2-Way Solenoid Valves
$74.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson 2026 Series 2-Way Solenoid Valves are versatile and reliable solutions designed for a wide range of applications including instrumentation, laboratory, burner pilot for gas and oil, welding equipment, and humidifiers. Constructed with a durable brass body and EPDM seat material, these valves operate as normally closed with an operating pressure range of 0 to 150 psig. With a compact design and a maximum temperature tolerance of 302°F, these valves offer precise control with a flow coefficient of 0.15. The solenoid valves are direct-acting and require no minimum differential pressure to operate, making them efficient and effective for various setups.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
6
Specifications Coil Va Inrush Amperage
6

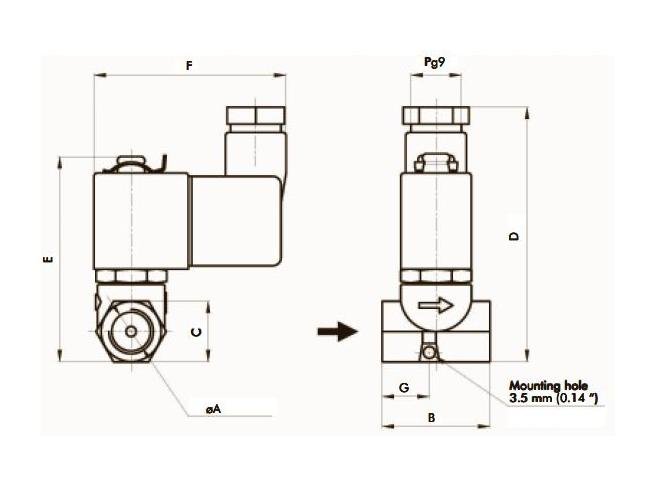

Specifications Dim A
1/4 in
Specifications Dim B
1.26 in
Specifications Dim C
.71 in
Specifications Dim D
2.99 in
Specifications Dim E
2.4 in
Specifications Dim F
2.24 in
Specifications Dim G
.55 in
Specifications Flow Coefficient Cv
0.15
Specifications List Price
74.25 USD
Specifications Max Temperature
302 ºF | 150 ºC
Specifications Operating Pressure
0 to 150 psig | 0 to 10 bar
Specifications Orifice Size
0.088 in | 2.25 mm
Specifications Port Size
1/4 in
Specifications Seat Material
EPDM
Specifications Series
2026
Specifications Valve Type
Normally Closed
Specifications Voltage
24 VDC
Specifications Weight
.38 lbs
