Jefferson 2026 Series 2-Way Solenoid Valves
Jefferson 2026 Series 2-Way Solenoid Valves
SKU:JEF-13151a
Reliable Jefferson 2-Way Solenoid Valves for precise fluid control. Brass body, Neoprene seat, 0-150 psig operating pressure, and 0.15 Cv for versatile applications.
Regular price
$74.25
Regular price
Sale price
$74.25
Unit price
per
Initiate Order
Jefferson 2026 Series 2-Way Solenoid Valves
$74.25
Quantity: 1
Claim Your Seller Account
Jefferson 2026 Series 2-Way Solenoid Valves
$74.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson 2026 Series 2-Way Solenoid Valves are versatile components perfect for applications in instrumentation, laboratory work, burner pilot systems for gas and oil, welding equipment, and humidifiers. Built with a Brass body and Neoprene seat, these valves operate between 0 to 150 psig, offering reliable performance under varying conditions. With a compact design and direct-acting mechanism, they ensure efficient fluid control without the need for minimum differential pressure. The valves exhibit precise control with a flow coefficient (Cv) of 0.15 and an orifice size of 0.088 inches, making them ideal for demanding industrial settings.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
6
Specifications Coil Va Inrush Amperage
6

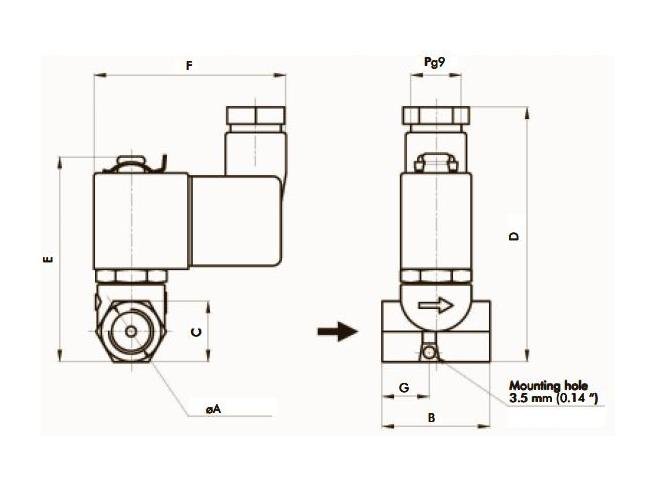

Specifications Dim A
1/4 in
Specifications Dim B
1.26 in
Specifications Dim C
.71 in
Specifications Dim D
2.99 in
Specifications Dim E
2.4 in
Specifications Dim F
2.24 in
Specifications Dim G
.55 in
Specifications Flow Coefficient Cv
0.15
Specifications List Price
74.25 USD
Specifications Max Temperature
176 ºF | 80 ºC
Specifications Operating Pressure
0 to 150 psig | 0 to 10 bar
Specifications Orifice Size
0.088 in | 2.25 mm
Specifications Port Size
1/4 in
Specifications Seat Material
Neoprene
Specifications Series
2026
Specifications Valve Type
Normally Closed
Specifications Voltage
24 VDC
Specifications Weight
.38 lbs
