Jefferson 2026 Series Brass 2-Way Solenoid Valve 1/4in
Jefferson 2026 Series Brass 2-Way Solenoid Valve 1/4in
SKU:JEF-8aea58
Efficient Jefferson 2026 Series Brass Solenoid Valve for precise control in varied applications. 1/4in port size.
Regular price
$74.25
Regular price
Sale price
$74.25
Unit price
per
Initiate Order
Jefferson 2026 Series Brass 2-Way Solenoid Valve 1/4in
$74.25
Quantity: 1
Claim Your Seller Account
Jefferson 2026 Series Brass 2-Way Solenoid Valve 1/4in
$74.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson 2026 Series 2-Way Solenoid Valves are designed for precision control and reliability in diverse applications ranging from instrumentation to gas and oil burners. With a sturdy brass body, neoprene seat, and direct-acting mechanism, these valves offer seamless operation at pressures up to 60 psig. Featuring a compact design and compatibility with 12 VDC voltage, these valves ensure efficient performance and easy integration. Ideal for institutional and government procurement processes, the Jefferson 2026 Series Solenoid Valves combine durability, versatility, and compliance with industry standards.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
6
Specifications Coil Va Inrush Amperage
6

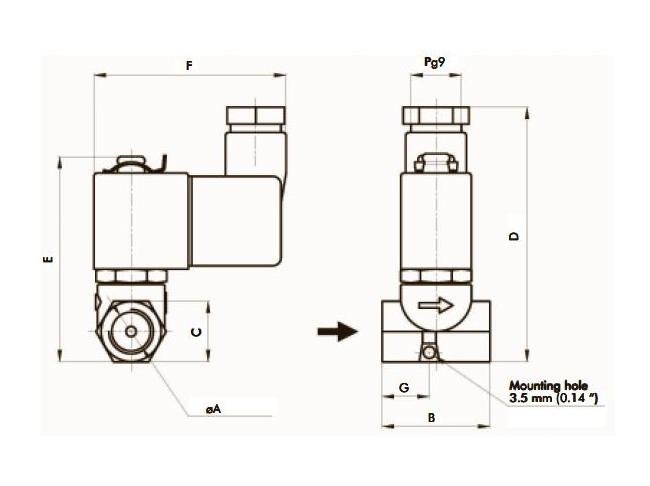

Specifications Dim A
1/4 in
Specifications Dim B
1.26 in
Specifications Dim C
.71 in
Specifications Dim D
2.99 in
Specifications Dim E
2.4 in
Specifications Dim F
2.24 in
Specifications Dim G
.55 in
Specifications Flow Coefficient Cv
0.36
Specifications List Price
74.25 USD
Specifications Max Temperature
176 ºF | 80 ºC
Specifications Operating Pressure
0 to 60 psig | 0 to 4 bar
Specifications Orifice Size
0.118 in | 3 mm
Specifications Port Size
1/4 in
Specifications Seat Material
Neoprene
Specifications Series
2026
Specifications Valve Type
Normally Closed
Specifications Voltage
12 VDC
Specifications Weight
.38 lbs
