Jefferson 2026 Series Brass 2-Way Solenoid Valve
Jefferson 2026 Series Brass 2-Way Solenoid Valve
SKU:JEF-2ad0e1
High-performance Jefferson 2026 Series 2-Way Solenoid Valve for instrumentation, pilot burners, and more. Brass body, direct-acting design.
Regular price
$74.25
Regular price
Sale price
$74.25
Unit price
per
Initiate Order
Jefferson 2026 Series Brass 2-Way Solenoid Valve
$74.25
Quantity: 1
Claim Your Seller Account
Jefferson 2026 Series Brass 2-Way Solenoid Valve
$74.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson 2026 Series 2-Way Solenoid Valve is a high-performance valve suitable for a range of applications including instrumentation, pilot burner systems, welding equipment, and humidifiers. With a brass body and neoprene seat, this valve operates at pressures up to 300 psig and temperatures of 176°F. Its direct-acting design ensures reliable performance without the need for minimum differential pressure. The valve's 1/4 inch port size, compact dimensions, and low weight make it versatile and easy to install in various settings.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
6
Specifications Coil Va Inrush Amperage
6

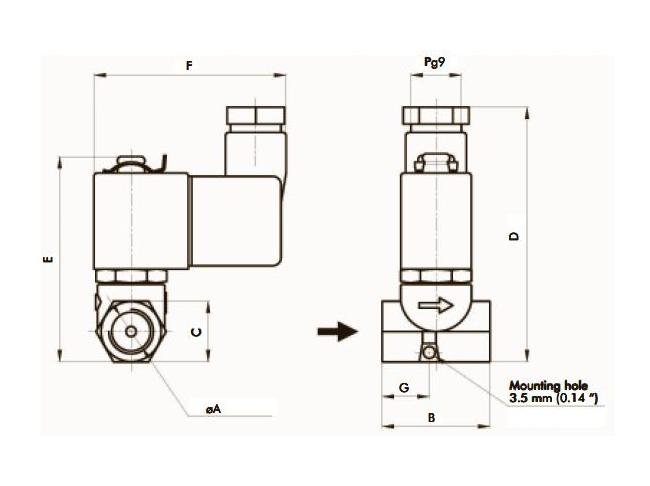

Specifications Dim A
1/4 in
Specifications Dim B
1.26 in
Specifications Dim C
.71 in
Specifications Dim D
2.99 in
Specifications Dim E
2.4 in
Specifications Dim F
2.24 in
Specifications Dim G
.55 in
Specifications Flow Coefficient Cv
0.11
Specifications List Price
74.25 USD
Specifications Max Temperature
176 ºF | 80 ºC
Specifications Operating Pressure
0 to 300 psig | 0 to 20 bar
Specifications Orifice Size
0.068 in | 1.75 mm
Specifications Port Size
1/4 in
Specifications Seat Material
Neoprene
Specifications Series
2026
Specifications Valve Type
Normally Closed
Specifications Voltage
24 VDC
Specifications Weight
.38 lbs
