Jefferson 2026 Series Brass 2-Way Solenoid Valves
Jefferson 2026 Series Brass 2-Way Solenoid Valves
SKU:JEF-7e04f8
Versatile Jefferson 2026 Series Brass 2-Way Solenoid Valves with brass body, neoprene seat, and 24 VDC voltage ideal for various applications.
Regular price
$74.25
Regular price
Sale price
$74.25
Unit price
per
Initiate Order
Jefferson 2026 Series Brass 2-Way Solenoid Valves
$74.25
Quantity: 1
Claim Your Seller Account
Jefferson 2026 Series Brass 2-Way Solenoid Valves
$74.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson 2026 Series 2-Way Solenoid Valves are ideal for a wide range of applications including instrumentation, laboratory use, burner pilots for gas and oil, welding equipment, and humidifiers. These valves feature a brass body with neoprene seat material, ensuring reliable performance. With a normally closed valve type, operating pressure of 0 to 750 psig, and a compact design, these valves offer versatility, durability, and ease of installation. The 1/4 inch port size, low power consumption of 24 VDC, and compliance with industry standards make these solenoid valves a trusted choice for both consumer and institutional buyers.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
6
Specifications Coil Va Inrush Amperage
6

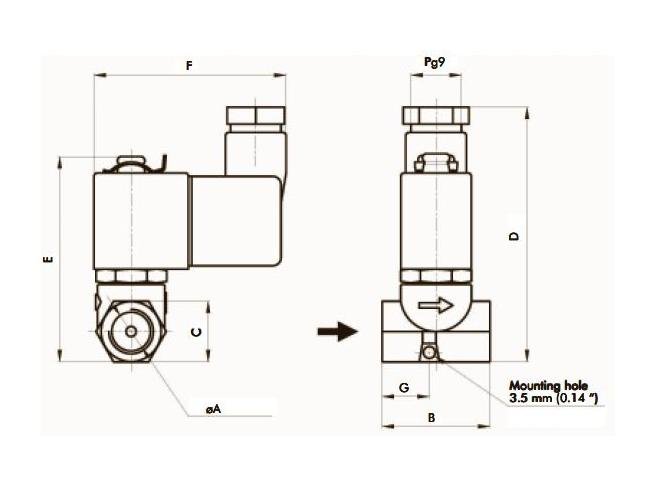

Specifications Dim A
1/4 in
Specifications Dim B
1.26 in
Specifications Dim C
.71 in
Specifications Dim D
2.99 in
Specifications Dim E
2.4 in
Specifications Dim F
2.24 in
Specifications Dim G
.55 in
Specifications Flow Coefficient Cv
0.06
Specifications List Price
74.25 USD
Specifications Max Temperature
176 ºF | 80 ºC
Specifications Operating Pressure
0 to 750 psig | 0 to 50 bar
Specifications Orifice Size
0.049 in | 1.25 mm
Specifications Port Size
1/4 in
Specifications Seat Material
Neoprene
Specifications Series
2026
Specifications Valve Type
Normally Closed
Specifications Voltage
24 VDC
Specifications Weight
.38 lbs
