Jefferson 2036 Series 2 Way Solenoid Valves - Brass, 1 in, Normally Closed
Jefferson 2036 Series 2 Way Solenoid Valves - Brass, 1 in, Normally Closed
SKU:JEF-f40c5a
High-performance Jefferson 2036 Series Solenoid Valves - Ideal for instrumentation, labs, burners, and welding. Brass body, 1 in, Normally Closed.
Regular price
$278.19
Regular price
Sale price
$278.19
Unit price
per
Initiate Order
Jefferson 2036 Series 2 Way Solenoid Valves - Brass, 1 in, Normally Closed
$278.19
Quantity: 1
Claim Your Seller Account
Jefferson 2036 Series 2 Way Solenoid Valves - Brass, 1 in, Normally Closed
$278.19
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson 2036 Series 2 Way Solenoid Valves offer reliable performance in diverse applications such as instrumentation, laboratories, burner pilots, welding equipment, and humidifiers. Constructed with high-quality brass body and Buna N seat material, these valves are designed for durability and precision. With a port size of 1 inch and operating pressure ranging from 4.5 to 225 psig, they ensure efficient flow control. The normally closed valve type and 220 VAC voltage make them suitable for a wide range of industrial needs, meeting rigorous standards for performance and longevity.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
8
Specifications Coil Va Inrush Amperage
12.9

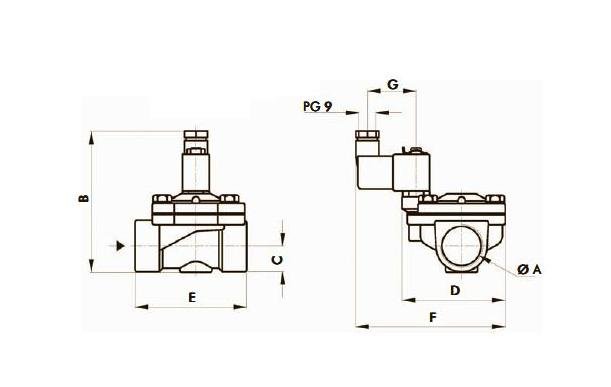

Specifications Dim A
1 in
Specifications Dim B
4.37 in | 111 mm
Specifications Dim C
.79 in | 20 mm
Specifications Dim D
3.19 in | 81 mm
Specifications Dim E
3.43 in | 87 mm
Specifications Dim F
4.65 in | 118 mm
Specifications Dim G
1.38 in | 35 mm
Specifications Flow Coefficient Cv
10.5
Specifications List Price
278.19 USD
Specifications Max Temperature
176 ºF | 80 ºC
Specifications Operating Pressure
4.5 to 225 psig | 0.3 to 15 bar
Specifications Orifice Size
1 in | 25 mm
Specifications Port Size
1 in
Specifications Port Type
Female NPT
Specifications Seat Material
Buna N
Specifications Series
2036
Specifications Valve Type
Normally Closed
Specifications Voltage
220 VAC
Specifications Weight
2.2 lbs
