Jefferson Brass 2-Way Solenoid Valve - 2026 Series
Jefferson Brass 2-Way Solenoid Valve - 2026 Series
SKU:JEF-11ba84
High-performance Jefferson Brass 2-Way Solenoid Valve for precise control in instrumentation, laboratory, and burner pilot applications.
Regular price
$74.25
Regular price
Sale price
$74.25
Unit price
per
Initiate Order
Jefferson Brass 2-Way Solenoid Valve - 2026 Series
$74.25
Quantity: 1
Claim Your Seller Account
Jefferson Brass 2-Way Solenoid Valve - 2026 Series
$74.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jefferson Brass 2-Way Solenoid Valve from the 2026 Series is a high-performance valve designed for a range of applications including instrumentation, laboratory use, burner pilot control for gas and oil, welding equipment, and humidifiers. This valve features a normally closed configuration with a brass body, EPDM seat material, and a 1/8 inch port size. With an operating pressure range of 0 to 60 psig and a max temperature of 302°F, this valve ensures reliable and efficient flow control. The direct-acting design requires no minimum differential pressure to operate, providing seamless functionality in various settings.
Product Specifications
Specifications Body Material
Brass
Specifications Coil Type
GF06C
Specifications Coil Va Holding Amperage
6
Specifications Coil Va Inrush Amperage
6

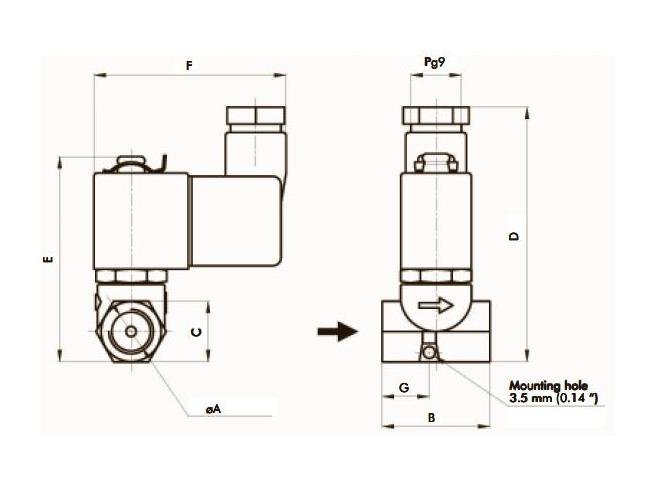

Specifications Dim A
1/8 in
Specifications Dim B
1.26 in
Specifications Dim C
.71 in
Specifications Dim D
2.99 in
Specifications Dim E
2.4 in
Specifications Dim F
2.24 in
Specifications Dim G
.55 in
Specifications Flow Coefficient Cv
0.30
Specifications List Price
74.25 USD
Specifications Max Temperature
302 ºF | 150 ºC
Specifications Operating Pressure
0 to 60 psig | 0 to 4 bar
Specifications Orifice Size
0.118 in | 3 mm
Specifications Port Size
1/8 in
Specifications Seat Material
EPDM
Specifications Series
2026
Specifications Valve Type
Normally Closed
Specifications Voltage
24 VDC
Specifications Weight
.38 lbs
