Jefferson Brass 2-Way Solenoid Valve for CNG Vehicles
Jefferson Brass 2-Way Solenoid Valve for CNG Vehicles
SKU:JEF-5c3fd2
Reliable and safe high-pressure solenoid valve for CNG (VNG) vehicle natural gas dispensers.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Jefferson Brass 2-Way Solenoid Valve for CNG Vehicles
$239.99
Quantity: 1
Claim Your Seller Account
Jefferson Brass 2-Way Solenoid Valve for CNG Vehicles
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

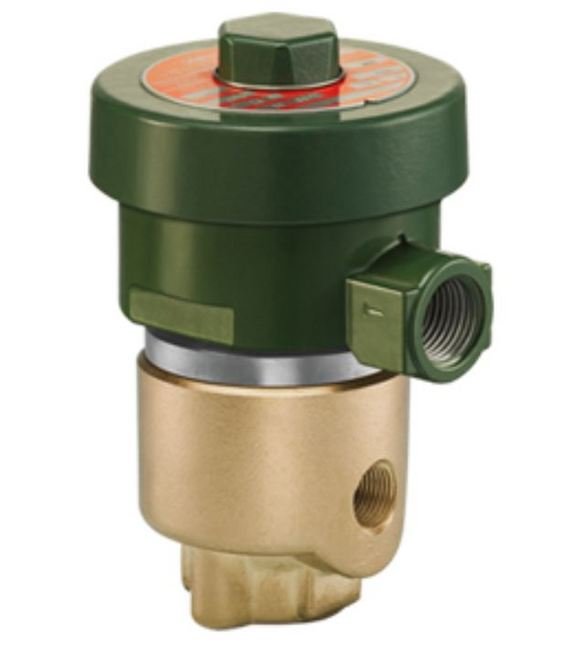

The Jefferson Brass 2-Way Solenoid Valve is a high-pressure, normally closed pilot-operated valve designed for CNG (VNG) vehicle natural gas dispensers. It features a durable brass body, Delrin seat material, and a high flow design for efficient operation. The valve ensures automatic safety shutoff and is UL and ATEX explosion-proof certified. With a 1/4 inch port size, operating pressure of 15 to 3750 psig, and a voltage of 120 VAC, this valve is ideal for reliable and safe CNG dispensing systems.
Product Specifications
Specifications Body Material
Brass
Specifications Flow Coefficient Cv
1.29
Specifications List Price
0 USD
Specifications Max Temperature
176 ºF | 80 ºC
Specifications Operating Pressure
15 to 3750 psig | 1 to 250 bar
Specifications Orifice Size
.31 in | 8 mm
Specifications Port Size
1/4 in
Specifications Port Type
Female NPT
Specifications Seat Material
Delrin
Specifications Series
2094 Series
Specifications Valve Type
Normally Closed
Specifications Voltage
120 VAC
