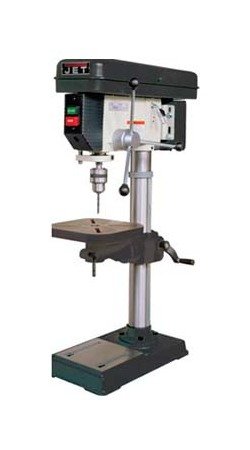

JET 15/20 Inch Step Pulley Drill Press
JET 15/20 Inch Step Pulley Drill Press
SKU:DRI-0db570
Powerful and precise drill press for industrial use, featuring a 1-1/2 HP motor, versatile spindle speeds, and durable construction.
Regular price
$2,999.00
Regular price
Sale price
$2,999.00
Unit price
per
Initiate Order
JET 15/20 Inch Step Pulley Drill Press
$2,999.00
Quantity: 1
Claim Your Seller Account
JET 15/20 Inch Step Pulley Drill Press
$2,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 15/20 Inch Step Pulley Drill Press is a robust and precise drilling solution designed for industrial applications. With a 1-1/2 HP motor and a range of spindle speeds from 150 to 4400 RPM, this drill press offers versatility and power. The cast iron head and large quill ensure accuracy, while the steel column provides sturdy support. Featuring a 5/8" drill chuck, this drill press is ideal for drilling through cast iron and mild steel with ease. The JET 15/20 Inch Step Pulley Drill Press is a reliable and durable choice for heavy-duty drilling needs, meeting stringent industrial standards.
Product Specifications
Features Features
Cast iron headLarge quill allows greater accuracyHead casting features a permanently lubricated ball bearing spindle assembly, using four Heavy-Duty ball bearings in an enclosed quill for longer life.Table tilts 45°Large ground steel column diameter for maximum head and table supportHinged metal belt and pulley coverAccurate depth stop displays inch/mm and has a quick set bolt fast5/8" Drill chuck and arbor
Technical Specs Base Dimensions
22-3/4 x 17-3/4 in
Technical Specs Brands
JET
Technical Specs Column Diameter
3-5/8 in
Technical Specs Distance Base Spindle
43-1/2 in
Technical Specs Drilling Capacity Cast Iron
3/4 in
Technical Specs Drilling Capacity Mild Steel
5/8 in
Technical Specs Motor Horse Power Hp
1-1/2 hp
Technical Specs Motor Voltage
115 V
Technical Specs Net Weight
321 lb
Technical Specs Number Of Phase
1
Technical Specs Overall Height
67 in
Technical Specs Overall Length
34 in
Technical Specs Overall Width
21 in
Technical Specs Quill Diameter
2-1/4 in
Technical Specs Quill Travel
4-3/4 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
1150 rpm | 150 rpm | 1550 rpm | 1840 rpm | 2220 rpm | 260 rpm | 2950 rpm | 300 rpm | 4200 rpm | 440 rpm | 490 rpm | 540 rpm
Technical Specs Spindle Taper
MT3
Technical Specs Table Size
18-1/2 x 16-1/2 in
