JET 15 Inch Variable Speed Floor Model Drill Press
JET 15 Inch Variable Speed Floor Model Drill Press
SKU:DRI-706402
Powerful JET 15" Variable Speed Floor Model Drill Press for precise drilling in diverse applications.
Regular price
$2,099.99
Regular price
Sale price
$2,099.99
Unit price
per
Initiate Order
JET 15 Inch Variable Speed Floor Model Drill Press
$2,099.99
Quantity: 1
Claim Your Seller Account
JET 15 Inch Variable Speed Floor Model Drill Press
$2,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

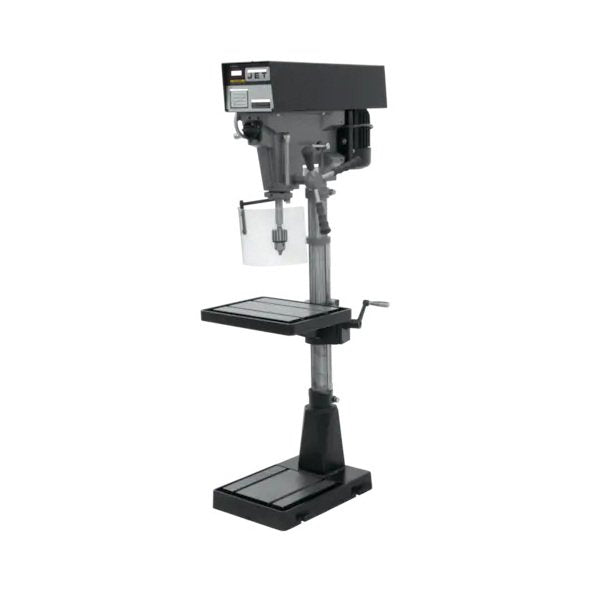

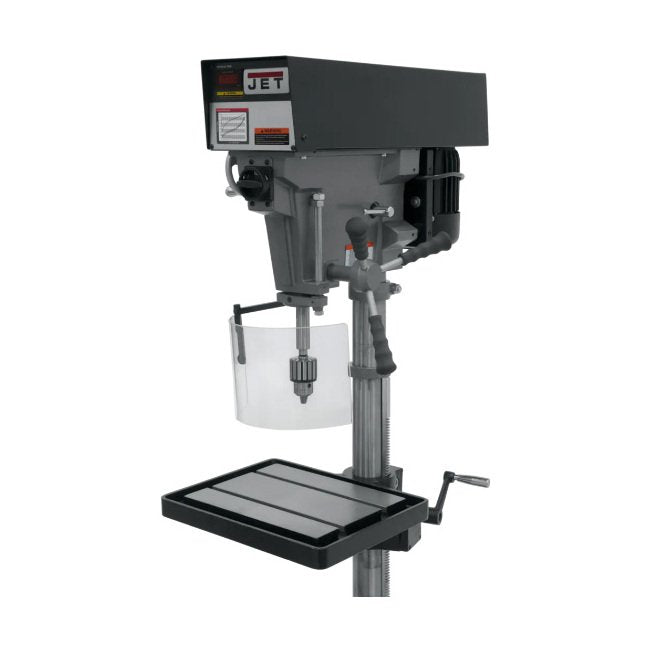

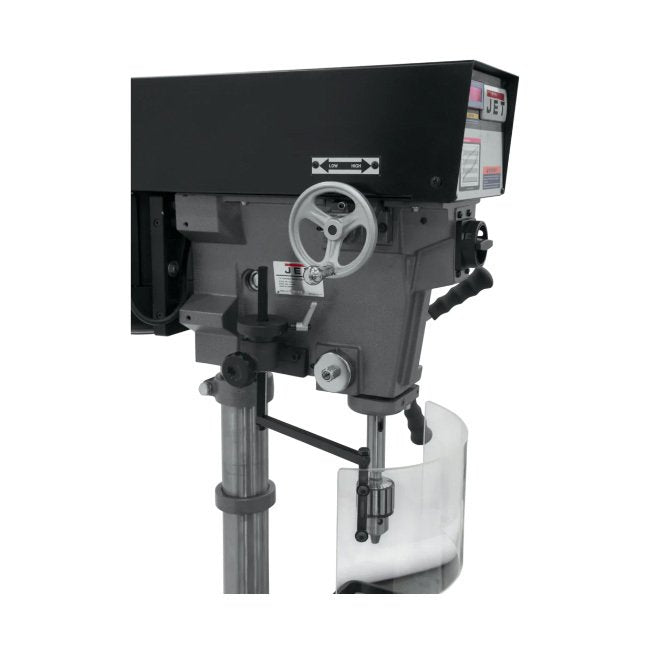

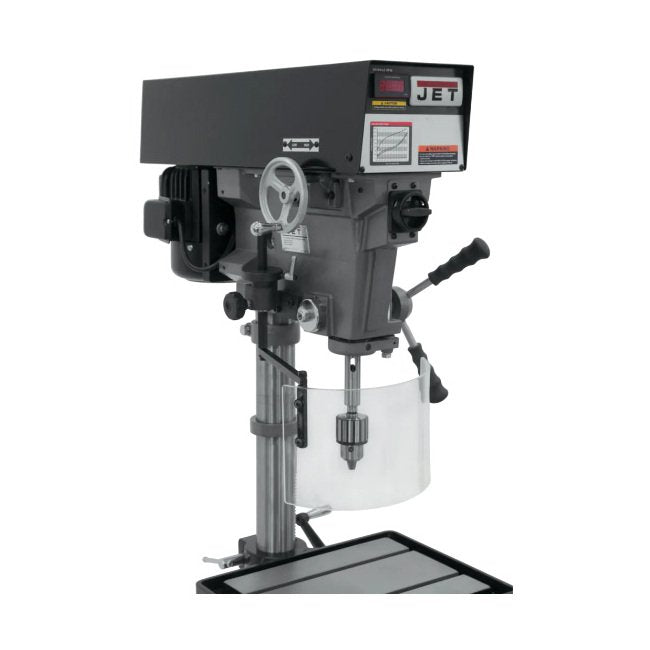

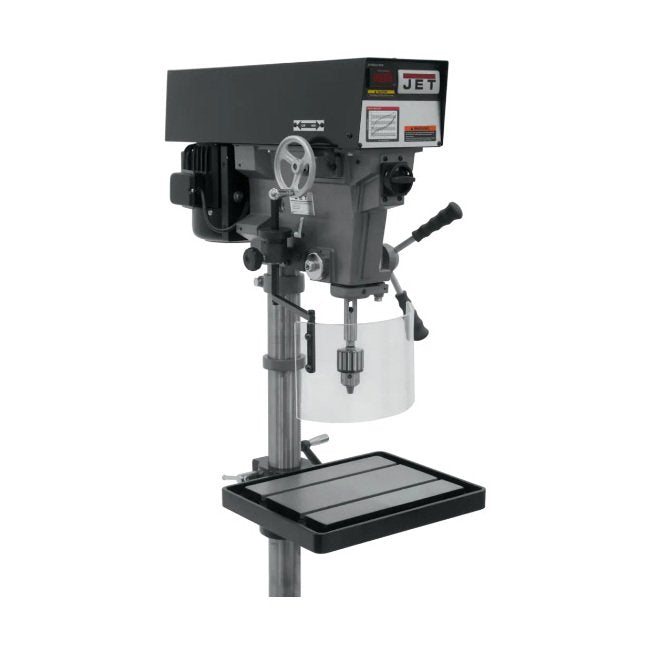

The JET 15 Inch Variable Speed Floor Model Drill Press is a powerhouse in precision drilling. Equipped with a variable-speed motor and a stepped-pulley system, this drill press offers a wide range of speeds from 400 to 5,000 RPM for versatile drilling capabilities. The scale-marked hand wheel allows for easy speed adjustments, while the full bearing support on the quill ensures maximum stiffness during operation. With features like a large 2-1/4" quill, 6" stroke, and accurate depth stop, this drill press delivers exceptional accuracy and control. Ideal for deep hole applications and precise drilling needs, it comes with safety features like a safety collar and meets stringent industry standards for reliable performance.
Product Specifications
Features Features
Full bearing support on quill for maximum spindle stiffnessHand wheel speed adjustment of 400 to 5,000 RPMLarge 2-1/4" quill for greater accuracy3" column diameter for maximum head support6" stroke for deep hole applicationAccurate depth stop for precise hole depths1/2" drill chuck and arbor includedSafety collar
Technical Specs Base Dimensions
20-7/16 x 14-3/16 in
Technical Specs Base Slots Number And Size
1/2 in | 2 in
Technical Specs Base Work Table
12-1/8 x 11-13/16 in
Technical Specs Brands
JET
Technical Specs Column Diameter
3 in
Technical Specs Distance From Column To Spindle
7-1/2 in
Technical Specs Distance Spindle To Table Max
25-3/4 in
Technical Specs Drilling Capacity Cast Iron
5/8 in
Technical Specs Drilling Capacity Mild Steel
1/2 in
Technical Specs Motor Voltage
230 V | 460 V
Technical Specs Number Of Phase
3
Technical Specs Number Of Spindle Speeds
Variable
Technical Specs Overall Height
71 in
Technical Specs Overall Length
30 in
Technical Specs Overall Width
20 in
Technical Specs Prewired Voltage
230 V
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
400 to 5,000 rpm
Technical Specs Spindle Distance To Base
44-1/2 in
Technical Specs Spindle Taper
MT2
Technical Specs Spindle Travel
6 in
Technical Specs Style Type
Variable
Technical Specs Table Length
15 in
Technical Specs Table Travel
16-3/4 in
Technical Specs Table Width
18 in
Technical Specs T Slots Number And Size
1/2 in | 2 in
Technical Specs T Slot Centers
5-5/16 in
Technical Specs Weight
426 lb
Technical Specs Work Table Weight Capacity
90 lb
