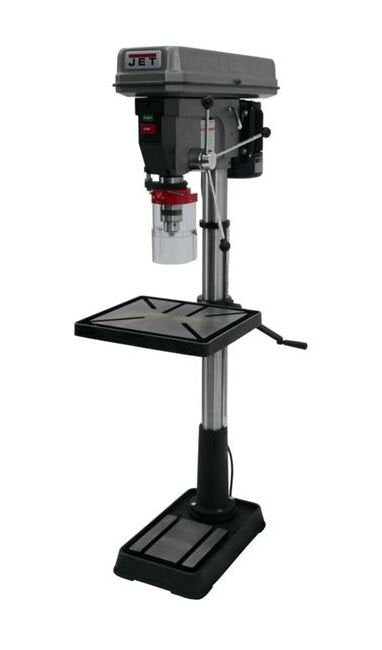

JET 20 Inch Floor Drill Press JDP-20MF
JET 20 Inch Floor Drill Press JDP-20MF
SKU:DRI-16d77c
Precision and power in one package - the JET 20 Inch Floor Drill Press JDP-20MF offers superior accuracy, stability, and versatility for industrial applications.
Regular price
$1,659.99
Regular price
Sale price
$1,659.99
Unit price
per
Initiate Order
JET 20 Inch Floor Drill Press JDP-20MF
$1,659.99
Quantity: 1
Claim Your Seller Account
JET 20 Inch Floor Drill Press JDP-20MF
$1,659.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET JDP-20MF 20 Inch Floor Drill Press is a precision tool offering exceptional accuracy, stability, and versatility. With a powerful 1-1/2 hp motor and a range of spindle speeds from 150 to 4500 rpm, this drill press can handle a variety of drilling tasks with ease. The 20-inch drilling capacity in mild steel and 1-inch capacity in cast iron make it ideal for heavy-duty industrial applications. Features like a tilting worktable, adjustable spindle return spring, and a telescoping safety spindle guard enhance user convenience and safety. Backed by JET's Two Year Warranty, this drill press is a reliable choice for professional workshops and institutional settings.
Product Specifications
Features Features
Hinged metal belt and pulley coverQuick adjustment motor mount for rapid changing of spindle speedsRotating, 45° tilting, crank operated worktable with release clampOn/off switch located on front of drill press head1/2" diameter external depth stop with three nut locking feature for quick adjustmentAdjustable tension spindle return springSpindle is supported by high quality bearingsDrill chuck and key includedTelescoping safety spindle guard
Technical Specs Base Dimensions
13-3/4 x 22-3/4 in
Technical Specs Base Work Table
13 x 8-1/2 in
Technical Specs Brands
JET
Technical Specs Column Diameter
3-3/8 in
Technical Specs Distance Column Spindle
10 in
Technical Specs Drilling Capacity Cast Iron
1 in
Technical Specs Drilling Capacity Mild Steel
3/4 in
Technical Specs Drills To Center Of Circle
20 in
Technical Specs Height
67 in
Technical Specs Length
33-1/2 in
Technical Specs Maximum Spindle Distance Table
29-1/8 in
Technical Specs Motor Horse Power Hp
1-1/2 hp | 115 V | 230 V | 1 rpm
Technical Specs Motor Voltage
2 V | 5/8 V
Technical Specs Number Of Spindle Speeds
12 rpm
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
150 to 4500 rpm
Technical Specs Spindle Distance Base
46-3/4 in
Technical Specs Spindle Taper
MT3
Technical Specs Style Type
Variable
Technical Specs Table Size Length
18-1/2 in
Technical Specs Table Size Width
16 in
Technical Specs Table Travel
21-1/2 in
Technical Specs T Slot
3-1/2 in
Technical Specs T Slots Number And Size
1/2 in | 6 in
Technical Specs Weight
282 lb
Technical Specs Width
18-1/2 in
Technical Specs Work Table Weight Capacity
80 lb
