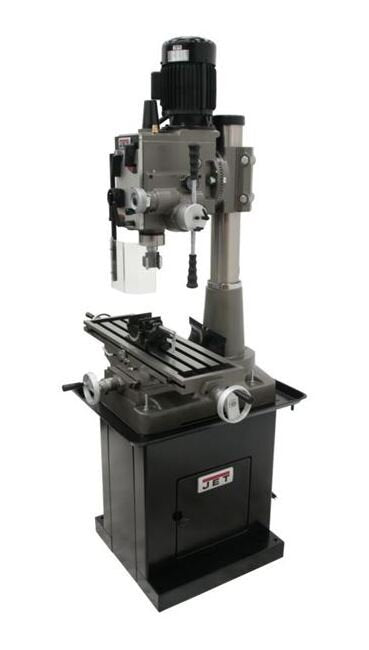

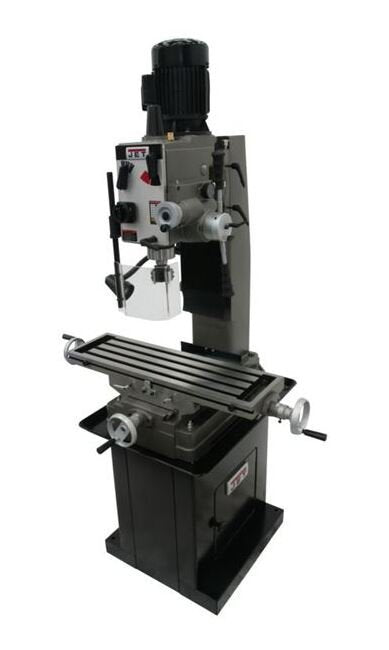

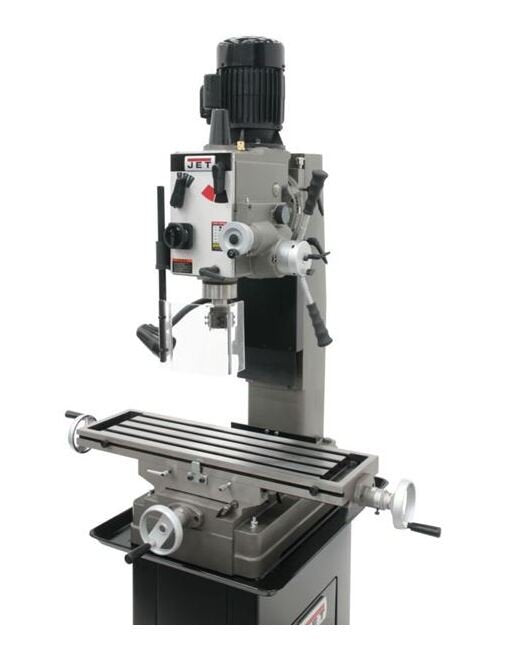

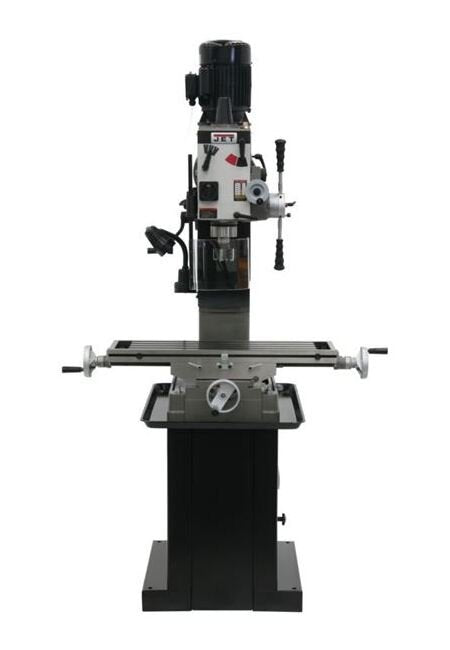

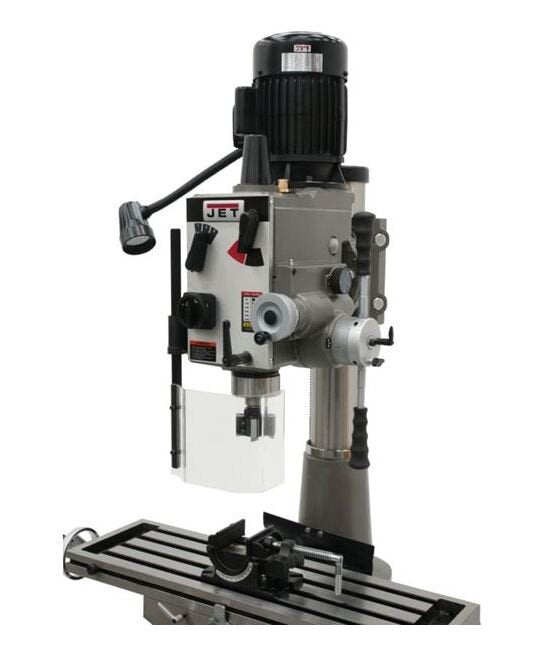

JET 3" Geared Head Drill Press
JET 3" Geared Head Drill Press
SKU:DRI-d6ffc1
Powerful JET 3" Geared Head Drill Press for precision drilling in high-intensity settings.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
JET 3" Geared Head Drill Press
$3,499.99
Quantity: 1
Claim Your Seller Account
JET 3" Geared Head Drill Press
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 3" Quill Diameter Geared Head Drill Press is a heavy-duty machine designed for precision drilling in demanding environments. With a robust construction and power down feed capability, this drill press offers full power to cut through various materials. Its square column with dovetail ways ensures stability and accuracy. CSA/CUS certified, it meets strict electrical guidelines. Features include a spindle guard, work lamp, calibrated fine down feed, internal depth gauge, rapid spindle speed changes, and R8 spindle for diverse tooling options.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Heavy-duty design allows for a variety of precision drilling applicationsFull power to the cutting tools through 6 speed geared headSquare column with dovetail waysCSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certifiedSpindle guardWork LampCalibrated fine down feed built inEasy to read internal depth gaugeHead tilts left & right 90ºRapid spindle speed changes through quick-select gear shift leversForward/reverse switchMilling table allows for movementR8 spindle allows use of all mill tooling
Technical Specs Base Dimensions
26-11/16 x 15-15/16 in
Technical Specs Brands
JET
Technical Specs Column Diameter
7-7/8 x 7-5/8 in
Technical Specs Distance Spindle To Table Max
18-1/8 in
Technical Specs Drilling Capacity
1-1/2 in
Technical Specs End Mill Capacity
3/4 in
Technical Specs Face Mill Capacity
4 in
Technical Specs Height
50 in
Technical Specs Length
29 in
Technical Specs Motor Phase
1 pH
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Spindle Speeds
6 rpm
Technical Specs Quill Diameter
3 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
130 rpm | 1550 rpm | 220 rpm | 480 rpm | 65 rpm | 925 rpm
Technical Specs Spindle Taper
R9
Technical Specs Spindle Travel
5 in
Technical Specs Swing
19-11/16 in
Technical Specs Table Longitudinal Travel
20-1/2 in
Technical Specs Table Size
9-1/2 x 32-1/4 in
Technical Specs T Slots Number And Size
4 in | 5/8 in
Technical Specs Weight
820 lb
Technical Specs Width
36 in
