JET 3 Inch Quill Diameter Geared Head Drill Press
JET 3 Inch Quill Diameter Geared Head Drill Press
SKU:DRI-be9694
Powerful JET 3 Inch Quill Diameter Geared Head Drill Press for precision drilling applications in high-intensity environments.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
JET 3 Inch Quill Diameter Geared Head Drill Press
$3,499.99
Quantity: 1
Claim Your Seller Account
JET 3 Inch Quill Diameter Geared Head Drill Press
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

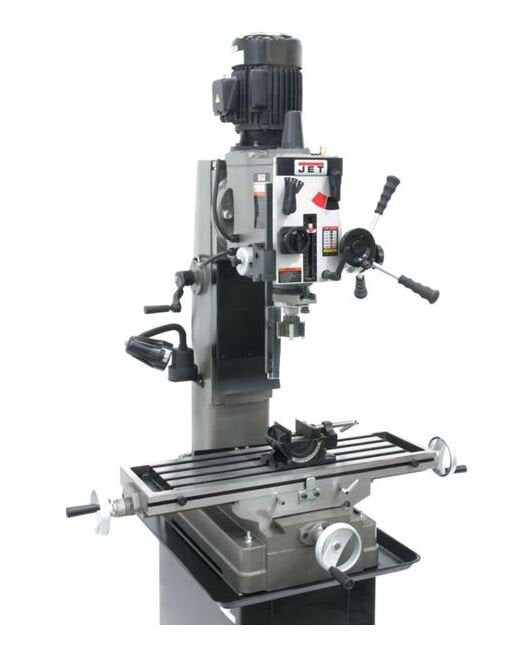

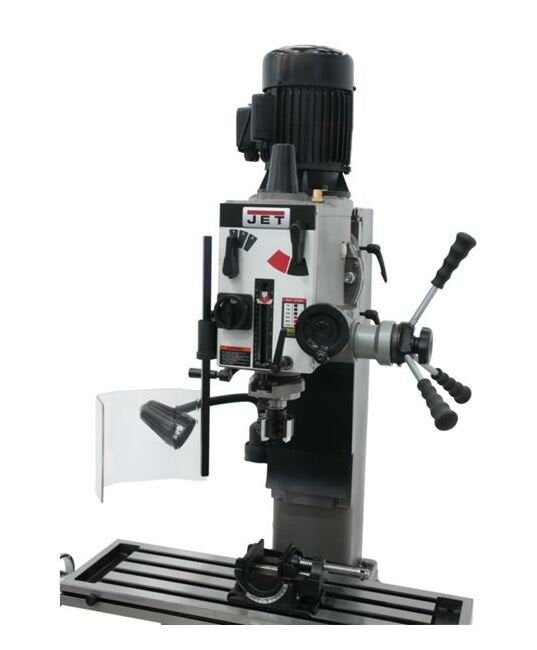

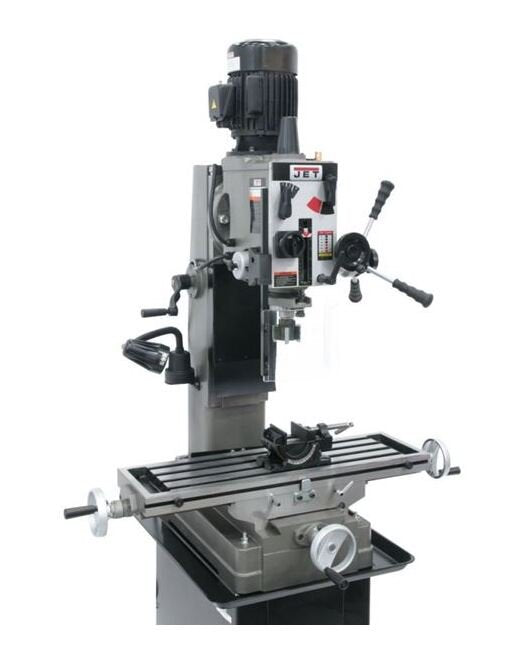

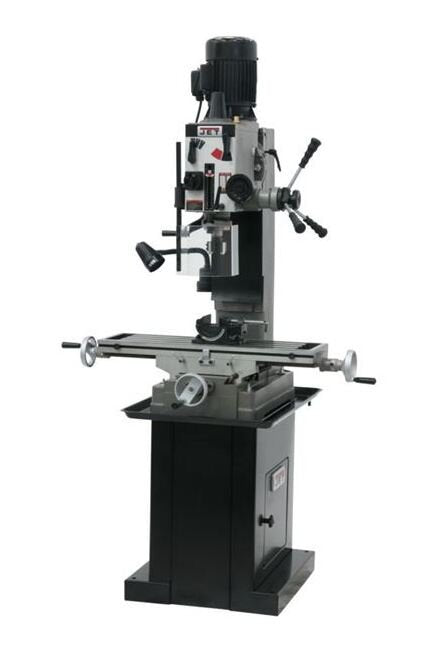

The JET 3 Inch Quill Diameter Geared Head Drill Press, part of the JMD-45GH series, is designed for heavy-duty precision drilling in demanding environments. With a 3-inch quill diameter and a range of spindle speeds from 130 to 925 RPM, this drill press provides full power to cutting tools. Features include a square column with dovetail ways, CSA/CUS certification, spindle guard, work lamp, and easy-to-read internal depth gauge. The R8 spindle allows for the use of all mill tooling, while the milling table enables movement for enhanced versatility. Rapid spindle speed changes, a forward/reverse switch, and a head that tilts left and right 90 degrees enhance ease of use and accuracy.
Product Specifications
Features Features
Heavy-duty design allows for a variety of precision drilling applicationsFull power to the cutting tools through 6 speed geared headSquare column with dovetail waysCSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certifiedSpindle guardWork LampCalibrated fine down feed built inEasy to read internal depth gaugeHead tilts left & right 90ºRapid spindle speed changes through quick-select gear shift leversForward/reverse switchMilling table allows for movementR8 spindle allows use of all mill tooling
Technical Specs Base Dimensions
26-11/16 x 15-15/16 in
Technical Specs Brands
JET
Technical Specs Column Diameter
7-7/8 x 7-5/8 in
Technical Specs Distance Spindle To Table Max
18-1/8 in
Technical Specs Drilling Capacity
1-1/2 in
Technical Specs End Mill Capacity
3/4 in
Technical Specs Face Mill Capacity
4 in
Technical Specs Height
50 in
Technical Specs Length
29 in
Technical Specs Motor Phase
1 pH
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Spindle Speeds
6 rpm
Technical Specs Quill Diameter
3 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
130 rpm | 1550 rpm | 220 rpm | 480 rpm | 65 rpm | 925 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Swing
19-11/16 in
Technical Specs Table Longitudinal Travel
20-1/2 in
Technical Specs Table Size
9-1/2 x 32-1/4 in
Technical Specs T Slots Number And Size
4 in | 5/8 in
Technical Specs Weight
794 lb
Technical Specs Width
36 in
