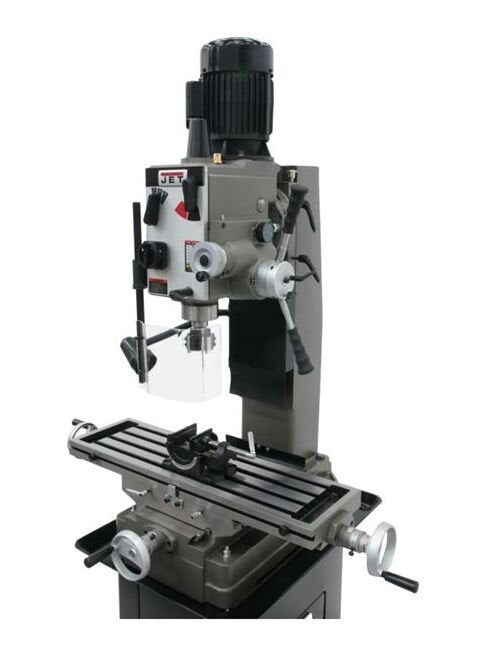

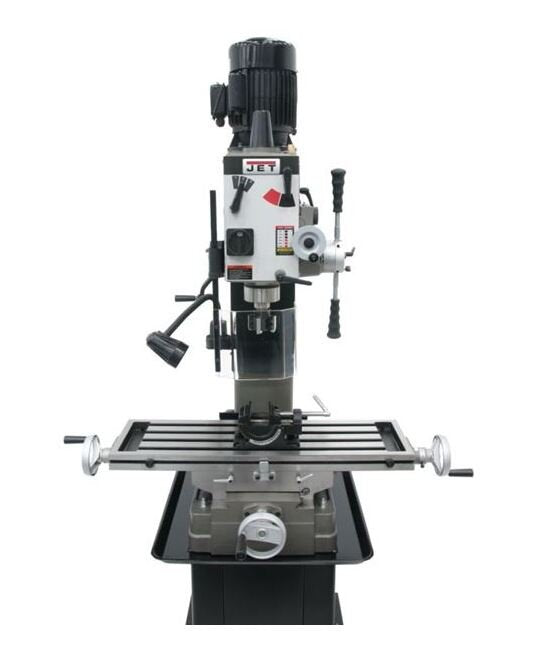

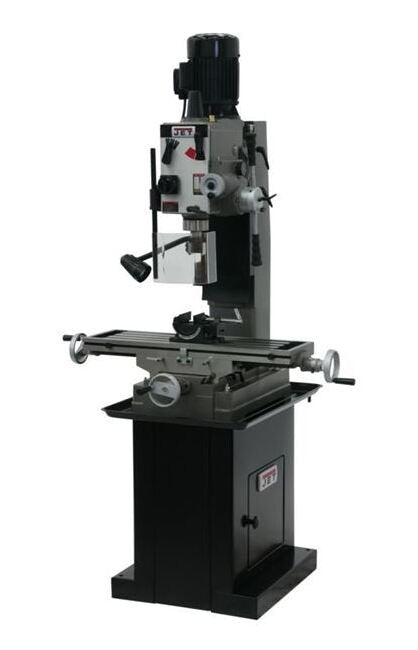

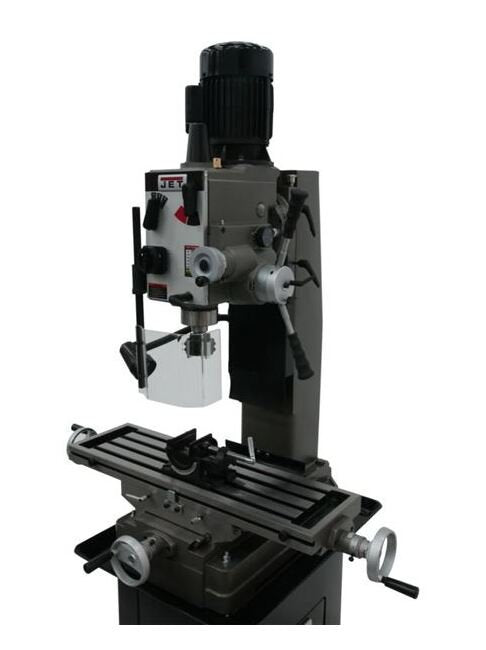

JET 3-Inch Quill Diameter Geared Head Drill Press
JET 3-Inch Quill Diameter Geared Head Drill Press
SKU:DRI-815107
Maximize production with precision! JET 3-Inch Quill Diameter Geared Head Drill Press for high-intensity drilling applications.
Regular price
$3,299.00
Regular price
Sale price
$3,299.00
Unit price
per
Initiate Order
JET 3-Inch Quill Diameter Geared Head Drill Press
$3,299.00
Quantity: 1
Claim Your Seller Account
JET 3-Inch Quill Diameter Geared Head Drill Press
$3,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 3-Inch Quill Diameter Geared Head Drill Press is engineered for maximum production efficiency, delivering the rigidity needed for precision drilling in intense environments. With a heavy-duty design, Variable Speed geared head, and CSA/CUS certification, this drill press ensures full power to cutting tools, easy spindle speed changes, and compliance with stringent electrical requirements. Features like a spindle guard, work lamp, and calibrated fine down feed enhance usability, while meeting industry-specific certifications to meet institutional procurement standards.
Product Specifications
Features Features
Heavy-duty design allows for a variety of precision drilling applicationsFull power to the cutting tools through Variable Speed geared headSquare column with dovetail waysCSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certifiedSpindle guardWork LampCalibrated fine down feed built in Calibrated fine down feed built inEasy to read internal depth gaugeHead tilts left & right 90ºRapid spindle speed changes through quick-select gear shift leversForward/reverse switchPower Down feed standardMilling table allows for movementR8 spindle allows use of all mill tooling
Technical Specs Base Dimensions
26-11/16 x 15-15/16 in
Technical Specs Brands
JET
Technical Specs Column Diameter
7-7/8 x 7-5/8 in
Technical Specs Distance Spindle To Table Max
18-1/8 in
Technical Specs Drilling Capacity
1-1/2 in
Technical Specs End Mill Capacity
3/4 in
Technical Specs Face Mill Capacity
4 in
Technical Specs Height
50 in
Technical Specs Length
29 in
Technical Specs Motor Phase
1 pH
Technical Specs Motor Voltage
115 V | 230 V
Technical Specs Number Of Spindle Speeds
Variable
Technical Specs Quill Diameter
3 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
50 to 2500 rpm
Technical Specs Spindle Taper
R10
Technical Specs Spindle Travel
4-1/4 in
Technical Specs Swing
19-11/16 in
Technical Specs Table Longitudinal Travel
20-1/2 in
Technical Specs Table Size
9-1/2 x 32-1/4 in
Technical Specs Weight
827 lb
Technical Specs Width
36 in
