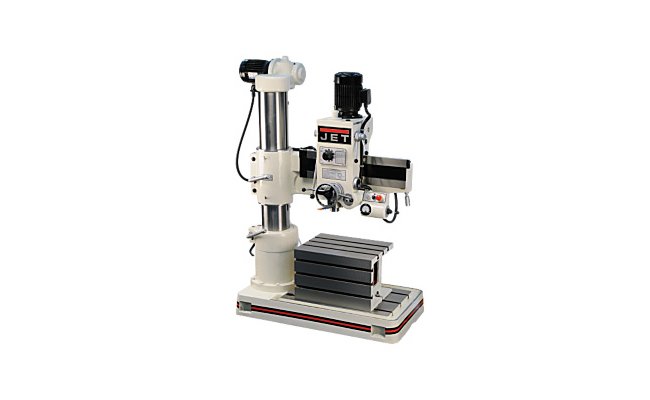

JET 4 Feet Arm Radial Drill Press - Heavy Duty Industrial Drill Press
JET 4 Feet Arm Radial Drill Press - Heavy Duty Industrial Drill Press
SKU:DRI-fde2a4
Experience precision drilling with the JET 4ft Arm Radial Drill Press - Reliable, Powerful, Efficient
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
JET 4 Feet Arm Radial Drill Press - Heavy Duty Industrial Drill Press
$12,499.99
Quantity: 1
Claim Your Seller Account
JET 4 Feet Arm Radial Drill Press - Heavy Duty Industrial Drill Press
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 4 Feet Arm Radial Drill Press stands out with its robust construction and precision engineering. It features high-torque gears and spline shaft made of heat-treated nickel-chrome steel for durability and smooth operation. The spindle, supported by double row taper roller bearings, ensures stability for heavy drilling and boring tasks. With 12 speeds and 3 feed rates, this drill press offers versatility for various materials. Safety features like the arm raising safety device and counter-balanced mechanism enhance operational efficiency.
Product Specifications
Features Features
The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loadsThe spindle is made of the finest case hardened steel for extra strength and wearThe spindle is supported by double row taper roller and thrust ball bearings at the nose with thrust and radial axis bearings at the topThe spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracyPush button controls are all reduced to 110VElectrical circuits are located in the built-in control box at the rear of the arm- this keeps the controls dust and humidity free while making them easily accessible for maintenanceEntire frame is made of Methanide and high tensile strength cast iron to handle the heaviest of jobsArm raising safety device prevents arm from droppingCounter balanced mechanism for spindle return12 speeds/3 feed rates make exotic materials easier to drill, bore and tapCentralized control centerAutomatic tool ejectorIndependent arm manual clamping system, which locks and unlocks the head and columnBuilt in work lightCoolant pumpTool kitBox table
Technical Specs Base Size
67 to 3/4 X 28 X 6 to 1/2 in
Technical Specs Boring Capacity Cast Iron
4-3/4 in
Technical Specs Boring Capacity Steel
3-3/8 in
Technical Specs Brands
JET
Technical Specs Column Diameter
11-13/16 in
Technical Specs Coolant Pump Motor
1/8 hp
Technical Specs Drilling Capacity Cast Iron
2-5/16 in
Technical Specs Drilling Capacity Mild Steel
1-7/8 in
Technical Specs Machine Height From Floor
109-1/2 in
Technical Specs Maximum Distance Base Spindle
54 in
Technical Specs Maximum Distance From Column To Spindle
46 in
Technical Specs Minimum Distance Base Spindle
19-3/8 in
Technical Specs Minimum Distance From Column To Spindle
13-3/4 in
Technical Specs Motor Horse Power Hp
2-1/2 to 5 hp
Technical Specs Motor Voltage
460 V
Technical Specs Net Weight
4620 lb
Technical Specs Number Of Phase
3
Technical Specs Number Of Spindle Speeds
12
Technical Specs Overall Height
89 in
Technical Specs Overall Length
80 in
Technical Specs Overall Width
39 in
Technical Specs Quill Down Feed Rates
0.002 | 0.004 | 0.006
Technical Specs Quill Travel
9-7/8 in
Technical Specs Quill Travel W Powerfeed Engaged
4 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
45 to 1550 rpm
Technical Specs Spindle Taper
MT4
Technical Specs Table Size
27-7/8 X 20-1/4 X 16-152 in
Technical Specs Tapping Capacity Cast Iron
1-1/2 in
Technical Specs Tapping Capacity Mild Steel
1 in
Technical Specs Travel Of Head Horizontal
35 in
Technical Specs T Slots Number And Size
3 in | 3/4 in
