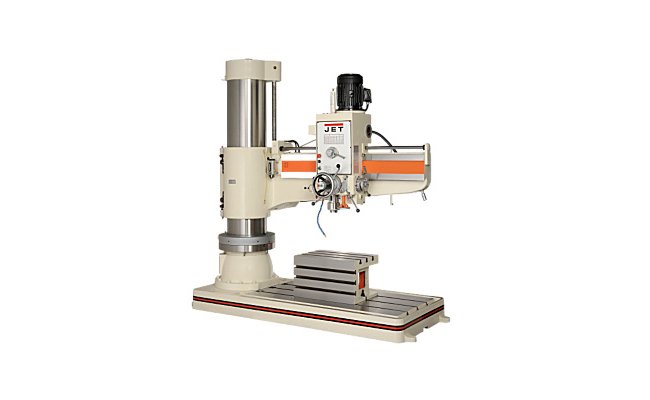

JET 5ft Arm Radial Drill Press - Industrial Grade
JET 5ft Arm Radial Drill Press - Industrial Grade
SKU:DRI-1dab09
Powerful industrial-grade drill press with precision engineering for heavy-duty applications. Ideal for institutional buyers.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
JET 5ft Arm Radial Drill Press - Industrial Grade
$12,499.99
Quantity: 1
Claim Your Seller Account
JET 5ft Arm Radial Drill Press - Industrial Grade
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 5ft Arm Radial Drill Press is a top-of-the-line industrial-grade machine ideal for heavy drilling and boring applications. With a robust construction featuring high-quality heat-treated steel components, double row taper roller bearings, and advanced safety features like the arm raising safety device, this drill press ensures maximum precision and durability. Its 12 speeds and 3 feed rates, along with centralized controls and automatic tool ejector, make it perfectly suited for a wide range of materials and projects, while meeting the stringent standards of institutional and government procurement requirements.
Product Specifications
Features Features
The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loadsThe spindle is made of the finest case hardened steel for extra strength and wearThe spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the topThe spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracyPush button controls are all reduced to 110VElectrical circuits are located in the built-in control box at the rear of the arm- this keeps the controls dust and humidity free while making them easily accessible for maintenanceEntire frame is made of Methanide and high tensile strength cast iron to handle the heaviest of jobsArm raising safety device prevents arm from droppingCounter balanced mechanism for spindle return12 speeds/3 feed rates make exotic materials easier to drill, bore and tapCentralized control centerAutomatic tool ejectorHydraulic head and column clampingBuilt in work lightCoolant pumpTool kitBox table
Technical Specs Arm Travel Vertical
50 in
Technical Specs Base Dimensions
97-5/8 X 41-11/32 X 8-1/4 in
Technical Specs Boring Capacity Cast Iron
7-3/8 in
Technical Specs Boring Capacity Steel
5 in
Technical Specs Brands
JET
Technical Specs Column Diameter
17 in
Technical Specs Coolant Pump Motor
1/2 hp
Technical Specs Drilling Capacity Cast Iron
2-7/8 in
Technical Specs Drilling Capacity Mild Steel
2-1/2 in
Technical Specs Machine Height From Floor
124-58/64 in
Technical Specs Maximum Distance Base Spindle
63 in
Technical Specs Maximum Distance From Column To Spindle
63 in
Technical Specs Minimum Distance Base Spindle
13 in
Technical Specs Minimum Distance From Column To Spindle
17 in
Technical Specs Motor Horse Power Hp
1 hp
Technical Specs Net Weight
11000 lb
Technical Specs Number Of Spindle Speeds
12
Technical Specs Overall Height
112 in
Technical Specs Overall Length
116 in
Technical Specs Overall Width
55 in
Technical Specs Prewired Voltage
230 V
Technical Specs Quill Down Feed Rates
0.003 to 0.038
Technical Specs Quill Travel
14-9/16 in
Technical Specs Quill Travel W Powerfeed Engaged
13 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
40 to 1920 rpm
Technical Specs Spindle Taper
MT5
Technical Specs Table Size
27-7/8 X 19-5/8 X 15-3/4 in
Technical Specs Tapping Capacity Cast Iron
2-3/8 in
Technical Specs Tapping Capacity Mild Steel
2 in
Technical Specs Travel Of Head Horizontal
49-5/8 in
