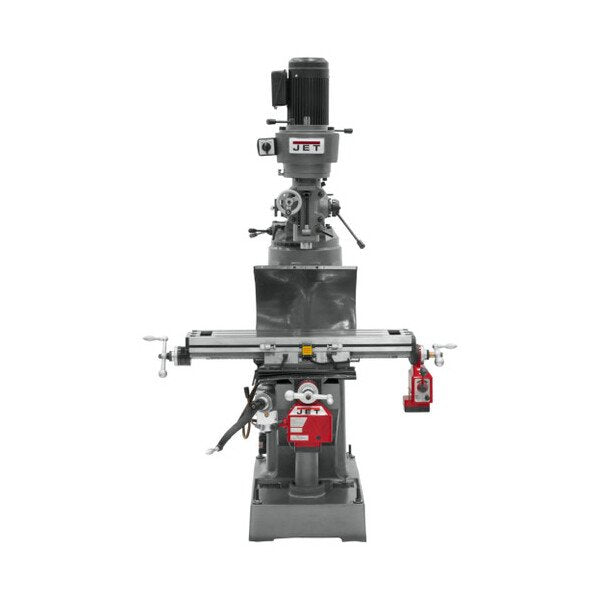

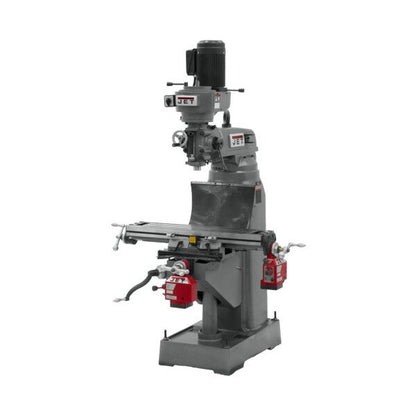

JET 8 x 36 Vertical Milling Machine with Power Feed
JET 8 x 36 Vertical Milling Machine with Power Feed
SKU:MIL-63a23d
Experience precision and reliability with the JET 8 x 36 Vertical Milling Machine. Backed by a Two Year Warranty.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
JET 8 x 36 Vertical Milling Machine with Power Feed
$8,499.99
Quantity: 1
Claim Your Seller Account
JET 8 x 36 Vertical Milling Machine with Power Feed
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 8 x 36 Vertical Milling Machine with x and Y-Axis Power Feed offers precision and safety with its hardened table, high precision spindle bearings, and secure locks on all moving surfaces. With a 1.5hp motor and 10 spindle speeds range, this machine ensures accuracy and efficiency. Additional features include a head that tilts left or right, chromed large diameter quill, and precision ground dovetail ways. Backed by the industry-leading JET Two Year Warranty, this machine is perfect for industrial applications requiring top-notch performance and reliability.
Product Specifications
Features Features
Precision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Height
78 in
Technical Specs Length
55 in
Technical Specs Model
JVM-836-3
Technical Specs Number Of Spindle Speeds
10
Technical Specs Powerfeed
X And Y Axis
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
10-1/2 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
1.5 hp
Technical Specs Spindle Speeds
120 to 1550 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
5 1/4 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
18 in
Technical Specs Table Size
7-7/8 x 35-3/4 in
Technical Specs Travel Of Knee
14 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
230 V
Technical Specs Weight
1617 lb
Technical Specs Width
52 in
Technical Specs Working Table Cross Travel
9 1/2 in
Technical Specs Working Table Longitudinal Travel
22 1/4 in
Technical Specs Work Table Weight Capacity
500 lb
