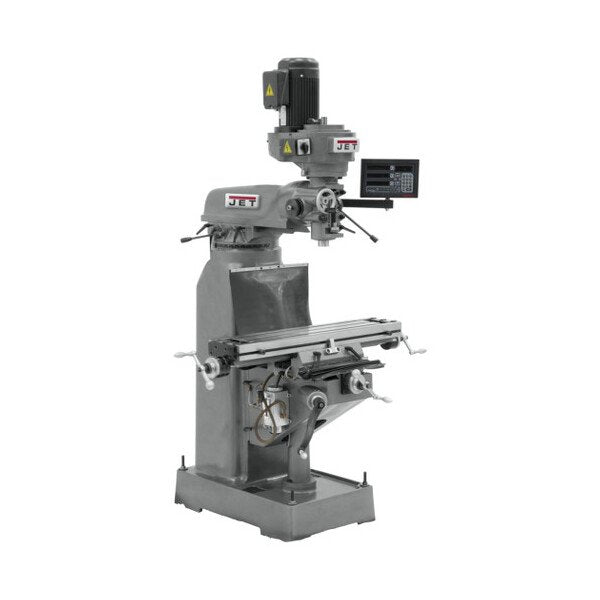

JET 8x36 Step Pulley Vertical Milling Machine with 3-Axis DRO
JET 8x36 Step Pulley Vertical Milling Machine with 3-Axis DRO
SKU:MIL-a130b4
Precision, safety, and reliability in one versatile machine, ideal for institutional buyers.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
JET 8x36 Step Pulley Vertical Milling Machine with 3-Axis DRO
$12,499.99
Quantity: 1
Claim Your Seller Account
JET 8x36 Step Pulley Vertical Milling Machine with 3-Axis DRO
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 8x36 Step Pulley Vertical Milling Machine with 3-Axis Newall DP700 DRO delivers precision and safety with features like a large diameter chromed quill, high precision spindle bearings, and hardened precision table. With over 10 inches of ram travel, head tilts, and locks on all movable surfaces, it ensures accuracy and user protection. This machine meets Federal procurement standards with a robust warranty, making it ideal for institutional buyers seeking reliability and compliance.
Product Specifications
Features Features
Precision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
3-Axis (Quill) Newall DP700PowerfeedX & Y-Axis
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Height
78 in
Technical Specs Length
55 in
Technical Specs Maximum Distance Spindle To Table
13 to 3/4 in
Technical Specs Model
JVM-836-3
Technical Specs Number Of Spindle Speeds
10
Technical Specs Powerfeed
X-Axis
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
10-1/2 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
1.5 hp
Technical Specs Spindle Speeds
120 to 1550 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
5 1/4 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
18 in
Technical Specs Table Size
7-7/8 x 35-3/4 in
Technical Specs Travel Of Knee
14 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
230 V
Technical Specs Weight
1617 lb
Technical Specs Width
52 in
Technical Specs Working Table Cross Travel
9 1/2 in
Technical Specs Working Table Longitudinal Travel
22 1/4 in
Technical Specs Work Table Weight Capacity
500 lb
