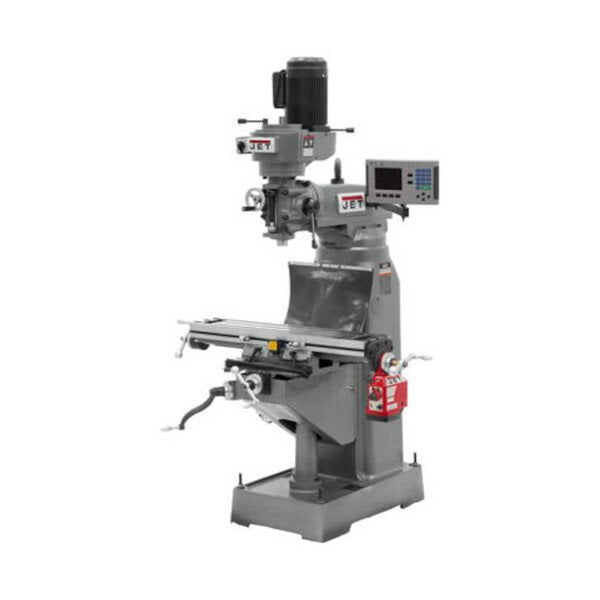

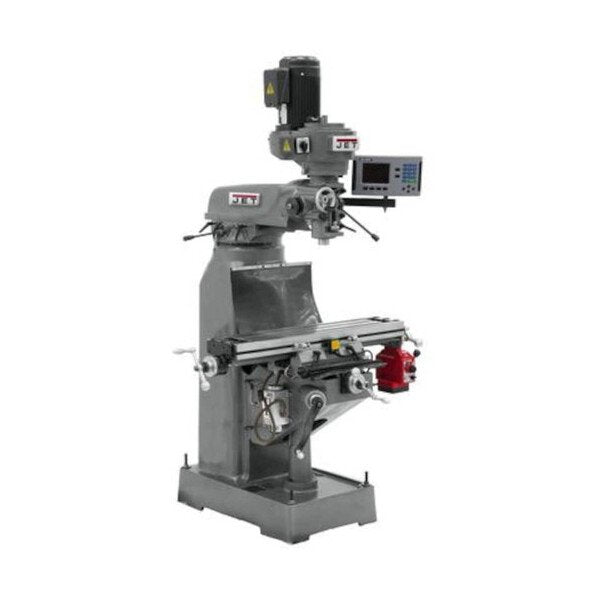

JET 8x36 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO X-Axis Power Feed
JET 8x36 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO X-Axis Power Feed
SKU:MIL-861cdd
Precision and power meet in the JET 8x36 Vertical Milling Machine for superior machining results.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
JET 8x36 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO X-Axis Power Feed
$12,499.99
Quantity: 1
Claim Your Seller Account
JET 8x36 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO X-Axis Power Feed
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 8x36 Step Pulley Vertical Milling Machine is a powerhouse in precision machining. With a robust 1.5 hp spindle motor and a large diameter chromed quill, it ensures exceptional accuracy and durability. This machine features over 10 inches of ram travel, hardened precision table, and high precision spindle bearings for unmatched performance. Locks on all movable surfaces, head tilts, and precision ground dovetail ways cater to versatile machining needs, while the 2-Axis ACU-RITE 203 Digital Readout and X-Axis Power Feed enhance efficiency. Perfect for government and institutional procurement needs, this machine complies with federal procurement standards and FAR regulations.
Product Specifications
Features Features
Precision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
2-Axis ACU-RITE 203
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Height
78 in
Technical Specs Length
55 in
Technical Specs Model
JVM-836-1
Technical Specs Number Of Spindle Speeds
10
Technical Specs Powerfeed
X-Axis
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
10-1/2 in
Technical Specs Spindle Motor Phase
1
Technical Specs Spindle Motor Power
1.5 hp
Technical Specs Spindle Speeds
240 to 1550 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
5 1/4 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
18 in
Technical Specs Table Size
7-7/8 x 35-3/4 in
Technical Specs Travel Of Knee
14 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
115 to 230 V
Technical Specs Weight
1617 lb
Technical Specs Width
52 in
Technical Specs Working Table Cross Travel
9 1/2 in
Technical Specs Working Table Longitudinal Travel
22 1/4 in
Technical Specs Work Table Weight Capacity
500 lb
