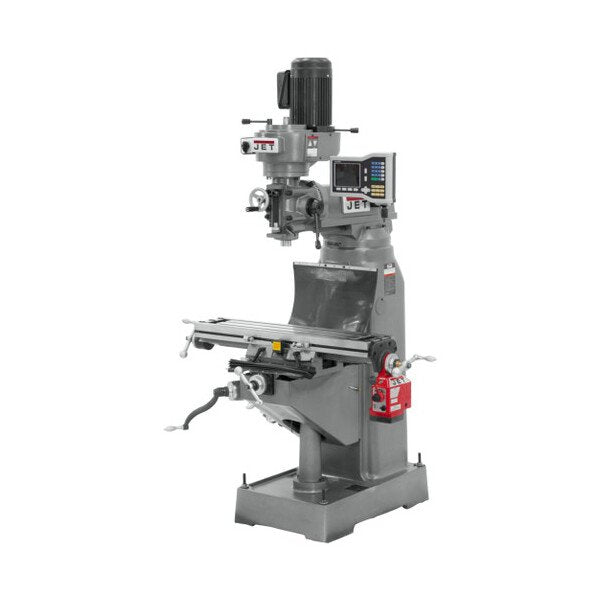

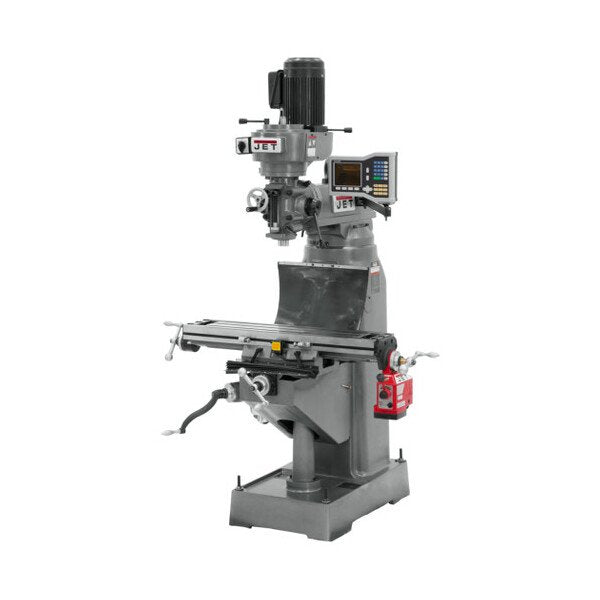

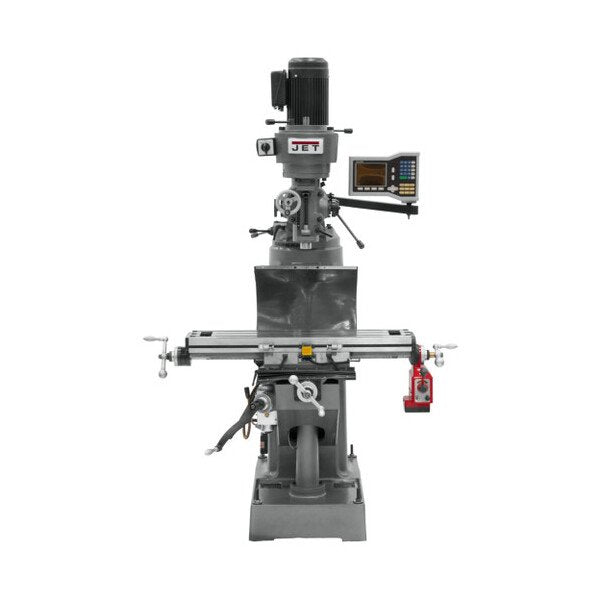

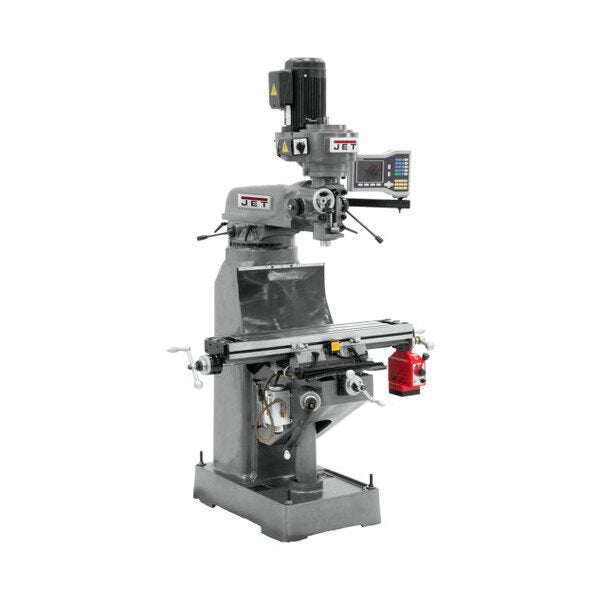

JET 8x36 Vertical Milling Machine with ACU-RITE VUE DRO
JET 8x36 Vertical Milling Machine with ACU-RITE VUE DRO
SKU:MIL-b59f6a
High-precision JET 8x36 Vertical Milling Machine for industrial applications, featuring ACU-RITE VUE DRO & X-Axis Power Feed.
Regular price
$9,199.00
Regular price
Sale price
$9,199.00
Unit price
per
Initiate Order
JET 8x36 Vertical Milling Machine with ACU-RITE VUE DRO
$9,199.00
Quantity: 1
Claim Your Seller Account
JET 8x36 Vertical Milling Machine with ACU-RITE VUE DRO
$9,199.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 8 x 36 Inch Step Pulley Vertical Milling Machine is a precision tool designed for industrial applications. With features like a large diameter chromed quill, high precision spindle bearings, and hardened table surfaces, it ensures accuracy and durability. This machine offers over 10" of ram travel, a 3-Axis ACU-RITE VUE DRO for accurate positioning, and power feed on the X-Axis for efficiency. Ideal for government and institutional use, it meets stringent standards for precision machining.
Product Specifications
Features Features
Precision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
3-Axis (Quill) ACU-RITE VUE
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Height
78 in
Technical Specs Length
55 in
Technical Specs Model
JVM-836-1
Technical Specs Number Of Spindle Speeds
10
Technical Specs Powerfeed
X-Axis
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
10-1/2 in
Technical Specs Spindle Motor Phase
1
Technical Specs Spindle Motor Power
1.5 hp
Technical Specs Spindle Speeds
240 to 1550 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
5 1/4 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
18 in
Technical Specs Table Size
7-7/8 x 35-3/4 in
Technical Specs Travel Of Knee
14 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
115 to 230 V
Technical Specs Weight
1617 lb
Technical Specs Width
52 in
Technical Specs Working Table Cross Travel
9 1/2 in
Technical Specs Working Table Longitudinal Travel
22 1/4 in
Technical Specs Work Table Weight Capacity
500 lb
