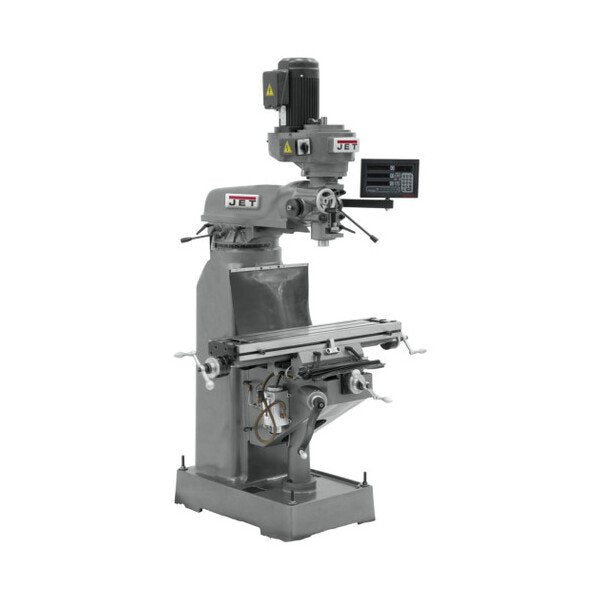

JET 8x36 Vertical Milling Machine with Newall DP700 DRO
JET 8x36 Vertical Milling Machine with Newall DP700 DRO
SKU:MIL-e03b21
Precision 8x36 Vertical Milling Machine with Newall DP700 DRO for accurate milling. 1.5 hp motor, 10 spindle speeds, and safety locks.
Regular price
$12,699.99
Regular price
Sale price
$12,699.99
Unit price
per
Initiate Order
JET 8x36 Vertical Milling Machine with Newall DP700 DRO
$12,699.99
Quantity: 1
Claim Your Seller Account
JET 8x36 Vertical Milling Machine with Newall DP700 DRO
$12,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 8x36 Inch Vertical Milling Machine offers precision milling with a hardened 8x36 table and a 2-Axis Newall DP700 DRO for accurate measurements. Featuring a 1.5 hp motor, R8 spindle taper, and 10 spindle speeds from 120 to 1550 rpm, this machine ensures precise operation. Safety is paramount with locks on all movable surfaces, while the 2-year warranty guarantees reliability. The chromed quill, precision head, and hardened table meet institutional procurement standards for quality and performance.
Product Specifications
Features Features
Precision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
2-Axis Newall DP700
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Height
78 in
Technical Specs Length
55 in
Technical Specs Maximum Distance Spindle To Table
13 to 3/4 in
Technical Specs Model
JVM-836-3
Technical Specs Number Of Spindle Speeds
10
Technical Specs Powerfeed
X-Axis
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
10-1/2 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
1.5 hp
Technical Specs Spindle Speeds
120 to 1550 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
5 1/4 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
18 in
Technical Specs Table Size
7-7/8 x 35-3/4 in
Technical Specs Travel Of Knee
14 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
230 V
Technical Specs Weight
1617 lb
Technical Specs Width
52 in
Technical Specs Working Table Cross Travel
9 1/2 in
Technical Specs Working Table Longitudinal Travel
22 1/4 in
Technical Specs Work Table Weight Capacity
500 lb
