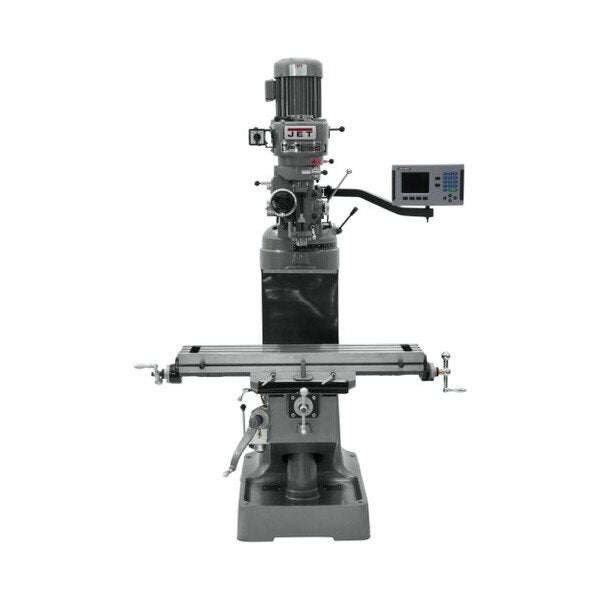

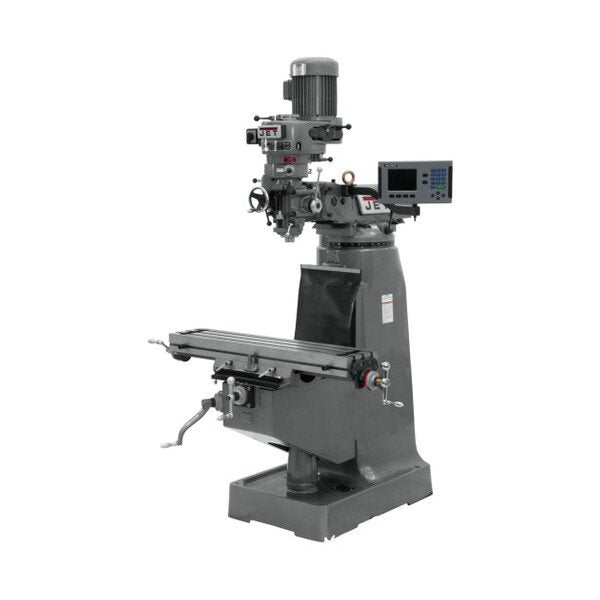

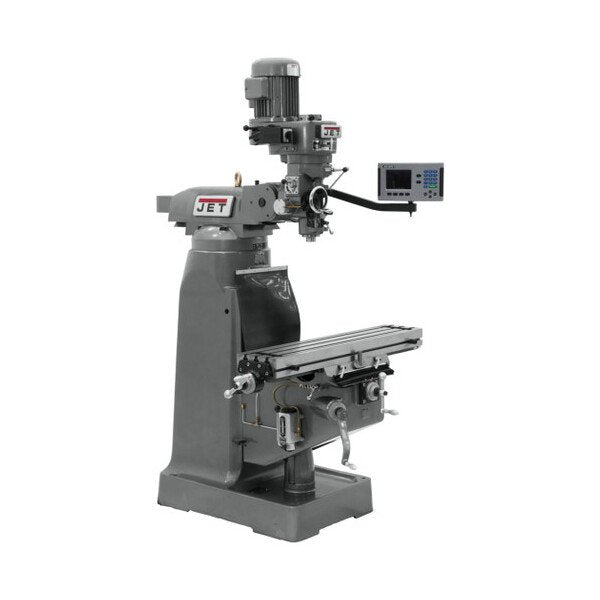

JET 9 x 42 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO
JET 9 x 42 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO
SKU:MIL-75a777
Experience precision and reliability with the JET 9 x 42 Vertical Milling Machine for superior industrial machining.
Regular price
$9,499.99
Regular price
Sale price
$9,499.99
Unit price
per
Initiate Order
JET 9 x 42 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO
$9,499.99
Quantity: 1
Claim Your Seller Account
JET 9 x 42 Step Pulley Vertical Milling Machine with ACU-RITE 203 DRO
$9,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The JET 9 x 42 Inch Step Pulley Vertical Milling Machine, equipped with the 2-Axis ACU-RITE 203 Digital Readout, offers high precision milling capabilities. Featuring Certified Meehanite® Castings, precision spindle bearings, and a variety of adjustable head and table angles, this machine ensures exceptional stability and accuracy. With a 2 HP spindle motor and 80 to 5440 RPM spindle speeds, it meets the rigorous demands of industrial machining while backed by the industry-leading JET Two Year Warranty.
Product Specifications
Features Features
Certified Meehanite® CastingsPrecision bored and honed milling headLarge diameter quill is chromedHigh precision spindle bearingsOver 10â of front to back ram travelLocks on all movable surfacesLocks on all movable surfacesHead tilts left or rightHardened and ground precision tablePrecision ground dovetail waysOne shot lubrication systemWay coversDraw barTool box and tools
Technical Specs Brands
JET
Technical Specs Collet Capacity
1/8 to 7/8 in
Technical Specs Digital Readout
2-Axis ACU-RITE 203
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
82 in
Technical Specs Length
57 in
Technical Specs Maximum Distance Spindle To Column
19 in
Technical Specs Maximum Distance Spindle To Table
17 1/2 in
Technical Specs Model
JTM-1
Technical Specs Number Of Spindle Speeds
16
Technical Specs Quill Diameter
3-3/8 in
Technical Specs Quill Down Feed Rates
0.0015 to 0.003 to 0.006
Technical Specs Ram Travel
13-3/8 in
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
2 hp
Technical Specs Spindle Speeds
80 to 5440 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle To Column Minimum
4-1/2 in
Technical Specs Spindle Travel
5 in
Technical Specs Style
Step Pulley R8
Technical Specs Table Longitudinal Travel With Powerfeed
20 2/7 in
Technical Specs Table Size
9 x 42 in
Technical Specs Travel Of Knee
14-1/2 in
Technical Specs T Slots Centers
2 1/2 in
Technical Specs T Slots Number And Size
3 in | 5/8 in
Technical Specs Voltage
230 V
Technical Specs Weight
2200 lb
Technical Specs Width
64 in
Technical Specs Working Table Cross Travel
12 1/2 in
Technical Specs Working Table Longitudinal Travel
23 7/8 in
Technical Specs Work Table Weight Capacity
550 lb
